3G-SDI/HD-SDI

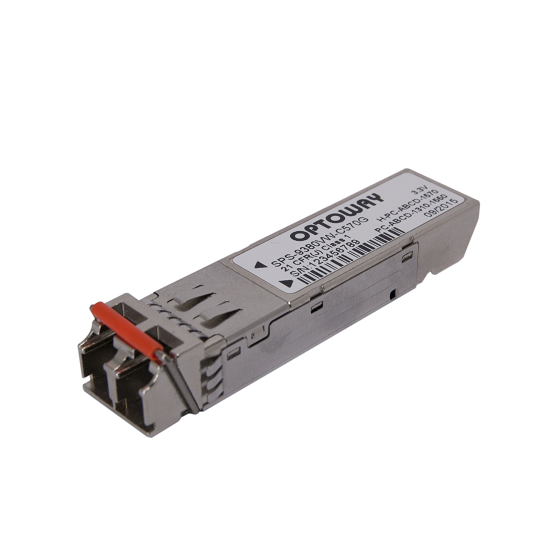

HD-SDI SFP

1 / 1
- SMPTE 292M/297M/259M Compatible
- Speed from 50 Mb/s to 1.485Gb/s
- Support Video Pathological Patterns for SD-SDI and HD-SDI
- Support 18-CH CWDM : 1270 nm to 1610 nm
- SFP Dual Transmitter / Dual Receiver / Transceiver
- Single 3.3V Power Supply
- RoHS Compliant


1.5Gb/s SM Video SFP Transmitter
Product Number Type Bit Rate TX1 TX2 Package Temperature
Range		 Data
Sheet
Wavelength Power Wavelength Power
SPS-7110V-2TG 2-TX 50 ~ 1500 Mb/s 1310 nm 0 to -7 dBm 1310 nm 0 to -7 dBm LC SFP 0 ~ 70°C
SPS-7110V-1TG 1-TX 50 ~ 1500 Mb/s 1310 nm 0 to -7 dBm     LC SFP 0 ~ 70°C
SPS-7110VW-2TG 2-TX 50 ~ 1500 Mb/s 1310 nm 0 to -7 dBm 1310 nm 0 to -7 dBm LC SFP with DMI 0 ~ 70°C
SPS-7110VW-1TG 1-TX 50 ~ 1500 Mb/s 1310 nm 0 to -7 dBm     LC SFP with DMI 0 ~ 70°C


1.5Gb/s SM Video SFP Receiver
Product Number Type Bit Rate RX1 RX2 Package Temperature
Range		 Data
Sheet
Wavelength Sens. Wavelength Sens.
SPS-7110V-2RG 2-RX 50 ~ 1500 Mb/s 1260 ~1620 nm  0 to -20 dBm 1260 ~1620 nm 0 to -20 dBm LC SFP 0 ~ 70°C
SPS-7110V-1RG 1-RX 50 ~ 1500 Mb/s 1260 ~1620 nm       LC SFP 0 ~ 70°C
SPS-7110VW-2RG 2-RX 50 ~ 1500 Mb/s 1260 ~1620 nm  0 to -20 dBm 1260 ~1620 nm 0 to -20 dBm LC SFP with DMI 0 ~ 70°C
SPS-7110VW-1RG 1-RX 50 ~ 1500 Mb/s 1260 ~1620 nm       LC SFP with DMI 0 ~ 70°C


1.5Gb/s SM Video SFP 1-Transmitter + 1-Receiver
Product Number Type Bit Rate Reach at 1.5Gb/s Package Temperature
Range		 Data
Sheet
SPS-7110V-1T1RG 1-TX + 1-RX 50 ~ 1500 Mb/s 21 km LC SFP 0 ~ 70°C
SPS-7110VW-1T1RG 1-TX + 1-RX 50 ~ 1500 Mb/s 21 km LC SFP with DMI 0 ~ 70°C


1.5Gb/s SM Video SFP Transceiver (same pin assignment as SFP_MSA)
Product Number Type Bit Rate Reach at 1.5Gb/s Temperature
Range		 Data
Sheet
SPS-7110VG TRX 50 ~ 1500 Mb/s 21 km 0 ~ 70°C
SPS-7110VWG TRX 50 ~ 1500 Mb/s 21 km 0 ~ 70°C
