2-Fiber

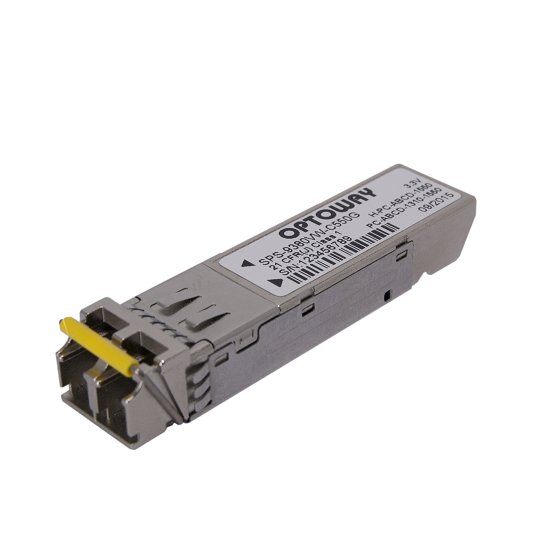

CWDM：3G-SDI SFP

1 / 1
- SMPTE 297-2006 Compatible
- Support SMPTE 424M/292M/297M/259M
- Speed from 50 Mb/s to 3Gb/s
- Support Video Pathological Patterns for SD-SDI, HD-SDI, and 3G-SDI
- Support 18-CH CWDM : 1270 nm to 1610 nm
- SFP Dual Transmitter / Dual Receiver / Transceiver
- Single 3.3V Power Supply
- RoHS Compliant


CWDM : 3Gb/s SM Video SFP Transmitter
Product Number Type Bit Rate TX1 TX2 Package Temperature
Range		 Data
Sheet
Wavelength Power Wavelength Power
SPS-9310VW-CXXCYYG* 2-TX 50 ~ 3000 Mb/s CWDM -3 to -8 dBm CWDM -3 to -8 dBm LC SFP with DMI 0 ~ 70°C
SPS-9330VW-CXXCYYG* 2-TX 50 ~ 3000 Mb/s CWDM  0 to -5 dBm CWDM  0 to -5 dBm LC SFP with DMI 0 ~ 70°C
SPS-9350VW-CXXCYYG* 2-TX 50 ~ 3000 Mb/s CWDM  4 to  0 dBm CWDM  4 to  0 dBm LC SFP with DMI 0 ~ 70°C
SPS-9380VW-CXXCYYG* 2-TX 50 ~ 3000 Mb/s CWDM  4 to  0 dBm CWDM  4 to  0 dBm LC SFP with DMI 0 ~ 70°C
SPS-9310VW-CXXG 1-TX 50 ~ 3000 Mb/s CWDM -3 to -8 dBm     LC SFP with DMI 0 ~ 70°C
SPS-9330VW-CXXG 1-TX 50 ~ 3000 Mb/s CWDM   0 to -5 dBm     LC SFP with DMI 0 ~ 70°C
SPS-9350VW-CXXG 1-TX 50 ~ 3000 Mb/s CWDM  4 to  0 dBm     LC SFP with DMI 0 ~ 70°C
SPS-9380VW-CXXG 1-TX 50 ~ 3000 Mb/s CWDM  4 to  0 dBm     LC SFP with DMI 0 ~ 70°C
* XX is for Channel 1 and YY is for Channel 2 CWDM Wavelength from 1470 nm to 1610 nm


Related 3Gb/s SM Video SFP Receiver
Product Number Type Bit Rate RX1 RX2 Package Temperature
Range		 Data
Sheet
Wavelength Sens. Wavelength Sens.
SPS-9110VW-2RG 2-RX 50 ~ 3000 Mb/s 1260 ~1620 nm  0 to -20 dBm 1260 ~1620 nm  0 to -20 dBm LC SFP with DMI 0 ~ 70°C
SPS-9380VW-2RG 2-RX 50 ~ 3000 Mb/s 1260 ~1620 nm -9 to -28 dBm 1260 ~1620 nm -9 to -28 dBm LC SFP with DMI 0 ~ 70°C
SPS-9110VW-1RG 1-RX 50 ~ 3000 Mb/s 1260 ~1620 nm  0 to -20 dBm     LC SFP with DMI 0 ~ 70°C
SPS-9380VW-1RG 1-RX 50 ~ 3000 Mb/s 1260 ~1620 nm -9 to -28 dBm     LC SFP with DMI 0 ~ 70°C


CWDM : 3Gb/s SM Video SFP 1-Transmitter + 1-Receiver
Product Number Type Bit Rate Power Budget Package Temperature
Range		 Data
Sheet
SPS-9310VW-CXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >12 dB LC SFP with DMI 0 ~ 70°C
SPS-9330VW-CXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >15 dB LC SFP with DMI 0 ~ 70°C
SPS-9350VW-CXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >20 dB LC SFP with DMI 0 ~ 70°C
SPS-9380VW-CXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >28 dB LC SFP with DMI 0 ~ 70°C


CWDM : 3Gb/s SM Video SFP Transceiver (same pin assignment as SFP_MSA)
Product Number Type Power Budget Package Temperature
Range		 Data
Sheet
SPS-9310VW-CXX0G* 50 ~3000 Mb/s >12 dB LC SFP with DMI 0 ~ 70°C
SPS-9330VW-CXX0G* 50 ~3000 Mb/s >15 dB LC SFP with DMI 0 ~ 70°C
SPS-9350VW-CXX0G* 50 ~3000 Mb/s >20 dB LC SFP with DMI 0 ~ 70°C
SPS-9380VW-CXX0G* 50 ~3000 Mb/s >28 dB LC SFP with DMI 0 ~ 70°C
*XX is for CWDM Wavelength from 1470 nm to 1610 nm.
