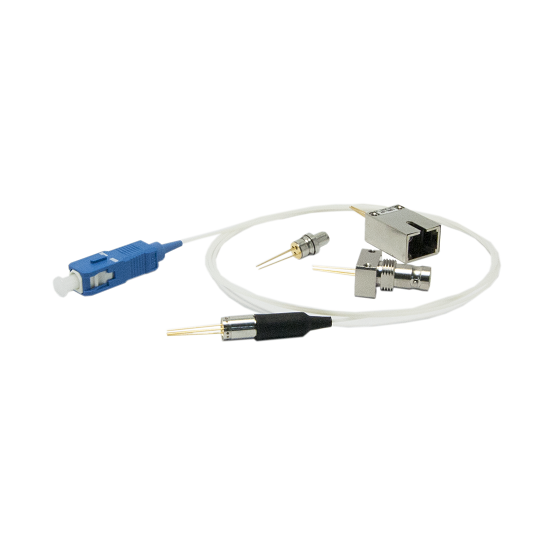

Avalanche PD - InGaAs APD

- High-speed InGaAs PIN Photodiode
- High-speed InGaAs Avalanche Photodiode
- High-speed GaAs PIN Photodiode
- High-speed WDM PIN Photodiode
- TO-25 mini size PIN PD TO / Pigtail for High-density Package
- CATV Return Path Photodiode for Analog Receiver
- Larger Area Photodiode for Monitor Applications
- RoHS Compliant



TO Package
Product Number Wavelength Active Area Temperature TO Type Cap Package Data
Sheet
APD-1100 1310/1550 nm 55 µm -40 ~ 85°C TO-46/3-pin Ball Lens Cap
APD-1150 1310/1550 nm 55 µm -40 ~ 85°C TO-25/2-pin Flat Window Cap
APD-1155 1310/1550 nm 55 µm -40 ~ 85°C TO-25/2-pin Ball Lens Cap


Pigtail Package
Product Number Wavelength Fiber Buffer Fiber Core Diameter Temperature Package Type Data
Sheet
APD-1300 1310/1550 nm 900 µm 50/125 µm -40 ~ 85°C 3-pin coaxial
APD-1310 1310/1550 nm 900 µm   9/125 µm -40 ~ 85°C 3-pin coaxial
APD-1350 1310/1550 nm 900 µm   9/125 µm -40 ~ 85°C 2-pin mini coaxial
APD-1351 1310/1550 nm 250 µm   9/125 µm -40 ~ 85°C 2-pin mini coaxial with Bare Fiber
