25G/50G/100G

25Gb/s 1-Fiber

1 / 1
- Hot-Pluggable 1-Fiber WDM SFP
- Compliant with SFP28 MSA
- Support 25G Ethernet
- Support CPRI Option 10
- Built-in dual CDR
- Low Power Dissipation
- Simlex LC Connector
- Single 3.3 V Power Supply
- RoHS-6 Compliant (lead-free)

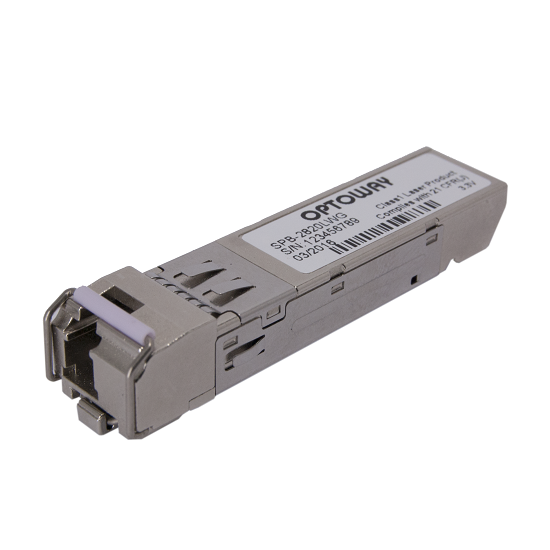

25Gb/s 1-Fiber SM SFP28
Product Number Bit Rate 25GBASE / CPRI Reach TX RX Package Temperature
Range		 Data
Sheet
SPB-2502LW-1270G Up to 25.78 Gb/s LR Lite / Option 10  2 km 1270 nm DFB 1330 nm LC SFP28    0 ~ 70°C
SPB-2502BLW-1270G Up to 25.78 Gb/s LR Lite / Option 10  2 km 1270 nm DFB 1330 nm LC SFP28 -20 ~ 85°C
SPB-2502ALW-1270G Up to 25.78 Gb/s LR Lite / Option 10  2 km 1270 nm DFB 1330 nm LC SFP28 -40 ~ 85°C
SPB-2502LW-1330G Up to 25.78 Gb/s LR Lite / Option 10  2 km 1330 nm DFB 1270 nm LC SFP28    0 ~ 70°C
SPB-2502BLW-1330G Up to 25.78 Gb/s LR Lite / Option 10  2 km 1330 nm DFB 1270 nm LC SFP28 -20 ~ 85°C
SPB-2502ALW-1330G Up to 25.78 Gb/s LR Lite / Option 10  2 km 1330 nm DFB 1270 nm LC SFP28 -40 ~ 85°C
SPB-2510LW-1270G Up to 25.78 Gb/s LR / Option 10 10 km 1270 nm DFB 1330 nm LC SFP28    0 ~ 70°C
SPB-2510BLW-1270G Up to 25.78 Gb/s LR / Option 10 10 km 1270 nm DFB 1330 nm LC SFP28 -20 ~ 85°C
SPB-2510ALW-1270G Up to 25.78 Gb/s LR / Option 10 10 km 1270 nm DFB 1330 nm LC SFP28 -40 ~ 85°C
SPB-2510LW-1330G Up to 25.78 Gb/s LR / Option 10 10 km 1330 nm DFB 1270 nm LC SFP28    0 ~ 70°C
SPB-2510BLW-1330G Up to 25.78 Gb/s LR / Option 10 10 km 1330 nm DFB 1270 nm LC SFP28 -20 ~ 85°C
SPB-2510ALW-1330G Up to 25.78 Gb/s LR / Option 10 10 km 1330 nm DFB 1270 nm LC SFP28 -40 ~ 85°C
SPB-2520LW-1270G Up to 25.78 Gb/s LR / Option 10 20 km 1270 nm DFB 1330 nm LC SFP28    0 ~ 70°C
SPB-2520BLW-1270G Up to 25.78 Gb/s LR / Option 10 20 km 1270 nm DFB 1330 nm LC SFP28 -20 ~ 85°C
SPB-2520ALW-1270G Up to 25.78 Gb/s LR / Option 10 20 km 1270 nm DFB 1330 nm LC SFP28 -40 ~ 85°C
SPB-2520LW-1330G Up to 25.78 Gb/s LR / Option 10 20 km 1330 nm DFB 1270 nm LC SFP28    0 ~ 70°C
SPB-2520BLW-1330G Up to 25.78 Gb/s LR / Option 10 20 km 1330 nm DFB 1270 nm LC SFP28 -20 ~ 85°C
SPB-2520ALW-1330G Up to 25.78 Gb/s LR / Option 10 20 km 1330 nm DFB 1270 nm LC SFP28 -40 ~ 85°C
SPB-2530LW-1270G Up to 25.78 Gb/s LR / Option 10 30 km 1270 nm DFB 1330 nm LC SFP28    0 ~ 70°C
SPB-2530BLW-1270G Up to 25.78 Gb/s LR / Option 10 30 km 1270 nm DFB 1330 nm LC SFP28 -20 ~ 85°C
SPB-2530ALW-1270G Up to 25.78 Gb/s LR / Option 10 30 km 1270 nm DFB 1330 nm LC SFP28 -40 ~ 85°C
SPB-2530LW-1330G Up to 25.78 Gb/s LR / Option 10 30 km 1330 nm DFB 1270 nm LC SFP28    0 ~ 70°C
SPB-2530BLW-1330G Up to 25.78 Gb/s LR / Option 10 30 km 1330 nm DFB 1270 nm LC SFP28 -20 ~ 85°C
SPB-2530ALW-1330G Up to 25.78 Gb/s LR / Option 10 30 km 1330 nm DFB 1270 nm LC SFP28 -40 ~ 85°C
SPB-2540LW-1270G Up to 25.78 Gb/s ER / Option 10 40 km 1270 nm DFB 1330 nm LC SFP28    0 ~ 70°C
SPB-2540BLW-1270G Up to 25.78 Gb/s ER / Option 10 40 km 1270 nm DFB 1330 nm LC SFP28 -20 ~ 85°C
SPB-2540ALW-1270G Up to 25.78 Gb/s ER / Option 10 40 km 1270 nm DFB 1330 nm LC SFP28 -40 ~ 85°C
SPB-2540LW-1330G Up to 25.78 Gb/s ER / Option 10 40 km 1330 nm DFB 1270 nm LC SFP28    0 ~ 70°C
SPB-2540BLW-1330G Up to 25.78 Gb/s ER / Option 10 40 km 1330 nm DFB 1270 nm LC SFP28 -20 ~ 85°C
SPB-2540ALW-1330G Up to 25.78 Gb/s ER / Option 10 40 km 1330 nm DFB 1270 nm LC SFP28 -40 ~ 85°C
SPB-2542LW-1270G Up to 25.78 Gb/s ER / Option 10 40 km 1270 nm DFB 1310 nm LC SFP28    0 ~ 70°C
SPB-2542BLW-1270G Up to 25.78 Gb/s ER / Option 10 40 km 1270 nm DFB 1310 nm LC SFP28 -20 ~ 85°C
SPB-2542ALW-1270G Up to 25.78 Gb/s ER / Option 10 40 km 1270 nm DFB 1310 nm LC SFP28 -40 ~ 85°C
SPB-2542LW-1310G Up to 25.78 Gb/s ER / Option 10 40 km 1310 nm DFB 1270 nm LC SFP28    0 ~ 70°C
SPB-2542BLW-1310G Up to 25.78 Gb/s ER / Option 10 40 km 1310 nm DFB 127 0nm LC SFP28 -20 ~ 85°C
SPB-2542ALW-1310G Up to 25.78 Gb/s ER / Option 10 40 km 1310 nm DFB 1270 nm LC SFP28 -40 ~ 85°C
