Fibre Channel

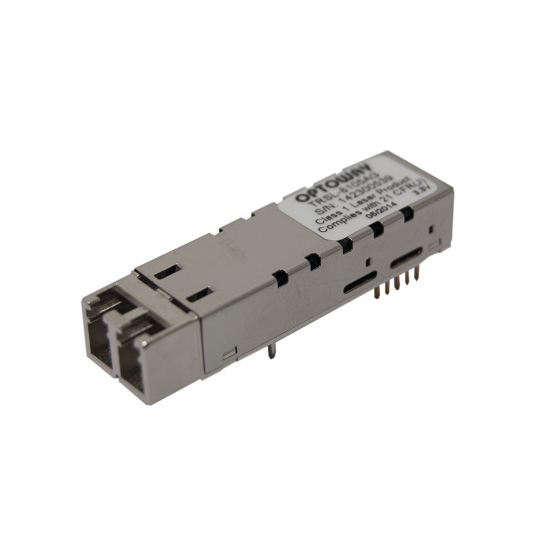

4G FC SFF

1 / 1
- Speed up to 4.25 Gb/s
- Compliant with FC 4x/2x/1x
- Compliant with SFF-8472 Digital Diagnostic Monitoring Interface (DMI)
- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- 1310 nm and 1550 nm Long-wavelength for Single-mode Fiber Applications
- 850 nm Short-wavelength for Multi-mode Fiber Applications
- Single 3.3V Supply
- RoHS Compliant


SFF MM LC
Product Number Bit Rate FC-PI Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRML-8100G 4/2/1 Gb/s 400/200/100 150/300/500 m 850 nm 2x5 SFF    0 ~ 70 °C -2.5 to -9 dBm -15/-17/-18 dBm
TRML-8100BG 4/2/1 Gb/s 400/200/100 150/300/500 m 850 nm 2x5 SFF -10 ~  85°C -2.5 to -9 dBm -15/-17/-18 dBm
TRML-8100AG 4/2/1 Gb/s 400/200/100 150/300/500 m 850 nm 2x5 SFF -40 ~ 85 °C -2.5 to -9 dBm -15/-17/-18 dBm
TRML-8100WG 4/2/1 Gb/s 400/200/100 150/300/500 m 850 nm 2x7 SFF with DMI    0 ~ 70 °C -2.5 to -9 dBm -15/-17/-18 dBm
TRML-8100BWG 4/2/1 Gb/s 400/200/100 150/300/500 m 850 nm 2x7 SFF with DMI -10 ~ 85 °C -2.5 to -9 dBm -15/-17/-18 dBm
TRML-8100AWG 4/2/1 Gb/s 400/200/100 150/300/500 m 850 nm 2x7 SFF with DMI -40 ~ 85 °C -2.5 to -9 dBm -15/-17/-18 dBm


SFF SM LC
Product Number Bit Rate FC-PI Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
TRSL-8105G 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm 2x5 SFF    0 ~ 70 °C -3 to -8 dBm -18 dBm
TRSL-8105BG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm 2x5 SFF -10 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8105AG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm 2x5 SFF -40 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8110G 4/2/1 Gb/s 400/200/100     10 km 1310 nm DFB 2x5 SFF    0 ~ 70 °C -3 to -8 dBm -18 dBm
TRSL-8110BG 4/2/1 Gb/s 400/200/100     10 km 1310 nm DFB 2x5 SFF -10 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8110AG 4/2/1 Gb/s 400/200/100     10 km 1310 nm DFB 2x5 SFF -40 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8120G 4/2/1 Gb/s 400/200/100     20 km 1310 nm DFB 2x5 SFF    0 ~ 70 °C  0 to -5 dBm -18 dBm
TRSL-8120BG 4/2/1 Gb/s 400/200/100     20 km 1310 nm DFB 2x5 SFF -10 ~ 85 °C   0 to -5 dBm -18 dBm
TRSL-8340G 4/2/1 Gb/s 400/200/100     40 km 1550 nm DFB 2x5 SFF    0 ~ 70 °C   4 to 0 dBm -18 dBm
TRSL-8380G 4/2/1 Gb/s 400/200/100     80 km 1550 nm DFB 2x5 SFF    0 ~ 70 °C   4 to 0 dBm -26 dBm
TRSL-8105WG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm 2x7 SFF with DMI    0 ~ 70 °C -3 to -8 dBm -18 dBm
TRSL-8105BWG 4/2/1Gb/s 400/200/100 10/5 km* 1310 nm 2x7 SFF with DMI -10 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8105AWG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm 2x7 SFF with DMI -40 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8110WG 4/2/1 Gb/s 400/200/100     10 km 1310 nm DFB 2x7 SFF with DMI    0 ~ 70 °C -3 to -8 dBm -18 dBm
TRSL-8110BWG 4/2/1 Gb/s 400/200/100     10 km 1310 nm DFB 2x7 SFF with DMI -10 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8110AWG 4/2/1 Gb/s 400/200/100     10 km 1310 nm DFB 2x7 SFF with DMI -40 ~ 85 °C -3 to -8 dBm -18 dBm
TRSL-8120WG 4/2/1 Gb/s 400/200/100     20 km 1310 nm DFB 2x7 SFF with DMI    0 ~ 70 °C  0 to -5 dBm -18 dBm
TRSL-8120BWG 4/2/1 Gb/s 400/200/100     20 km 1310 nm DFB 2x7 SFF with DMI -10 ~ 85 °C  0 to -5 dBm -18 dBm
TRSL-8340WG 4/2/1 Gb/s 400/200/100     40 km 1550 nm DFB 2x7 SFF with DMI    0 ~ 70 °C  4 to 0 dBm -18 dBm
TRSL-8380WG 4/2/1 Gb/s 400/200/100     80 km 1550 nm DFB 2x7 SFF with DMI    0 ~ 70 °C  4 to 0 dBm -26 dBm
* 5 km at 4.25Gb/s and 10 km at 2.125/1.063 Gb/s.


CWDM SFF SM LC
Product Number Bit Rate FC-PI Power
Budget		 Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
TRSL-8340-CXX0G 4/2/1 Gb/s 400/200/100 >18 dB CWDM* 2x5 SFF    0 ~ 70 °C 4 to 0 dBm -18 dBm
TRSL-8380-CXX0G 4/2/1 Gb/s 400/200/100 >28 dB CWDM* 2x5 SFF    0 ~ 70 °C 5 to 1 dBm -27 dBm
TRSL-8340W-CXX0G 4/2/1 Gb/s 400/200/100 >18 dB CWDM* 2x7 SFF with DMI    0 ~ 70 °C 4 to 0 dBm -18 dBm
TRSL-8380W-CXX0G 4/2/1 Gb/s 400/200/100 >28 dB CWDM* 2x7 SFF with DMI    0 ~ 70 °C 5 to 1 dBm -27 dBm
CWDM *  18-Wavelength from 1270 nm to 1610 nm, each step 20 nm.
