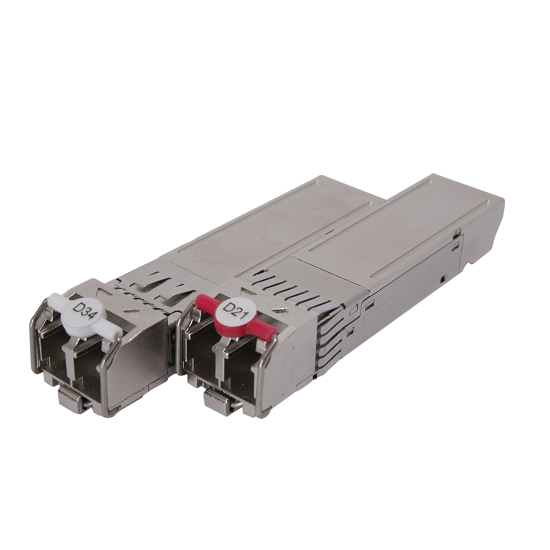

3G-SDI DWDM SFP

- Digital Video SM SFP
- SMPTE 297-2006 Compatible
- Support SMPTE 424M/292M/297M/259M
- Speed from 50 Mb/s to 3Gb/s
- Support Video Pathological Patterns for SD-SDI, HD-SDI, and 3G-SDI
- DWDM:100GHz ITU Grid, C Band
- SFP Dual Transmitter / Dual Receiver / Transceiver
- Single 3.3V Power Supply
- RoHS Compliant



DWDM: 3Gb/s SM Video SFP Transmitter
Product Number Type Bit Rate TX1 TX2 Package Temperature
Range
Data
Sheet
Wavelength Power Wavelength Power
SPS-9350VW-DXXDYYG 2-TX 50 ~ 3000 Mb/s DWDM  4 to 0 dBm DWDM  4 to 0 dBm LC SFP with DMI 0 ~ 70°C
SPS-9380VW-DXXDYYG 2-TX 50 ~ 3000 Mb/s DWDM  4 to 0 dBm DWDM  4 to 0 dBm LC SFP with DMI 0 ~ 70°C
SPS-93120VW-DXXDYYG 2-TX 50 ~ 3000 Mb/s DWDM  7 to 3 dBm DWDM  7 to 3 dBm LC SFP with DMI 0 ~ 70°C
SPS-9350VW-1TDXXG 1-TX 50 ~ 3000 Mb/s DWDM  4 to 0 dBm     LC SFP with DMI 0 ~ 70°C
SPS-9380VW-1TDXXG 1-TX 50 ~ 3000 Mb/s DWDM  4 to 0 dBm     LC SFP with DMI 0 ~ 70°C
SPS-93120VW-1TDXXG 1-TX 50 ~ 3000 Mb/s DWDM  7 to 3 dBm     LC SFP with DMI 0 ~ 70°C


Related 3Gb/s SM Video SFP Receiver
Product Number Type Bit Rate RX1 RX2 Package Temperature
Range
Data
Sheet
Wavelength Sens. Wavelength Sens.
SPS-9110VW-2RG 2-RX 50 ~ 3000 Mb/s 1260 ~1620 nm  0 to -20 dBm 1260 ~1620 nm 0 to -20 dBm LC SFP with DMI 0 ~ 70°C
SPS-9380VW-2RG 2-RX 50 ~ 3000 Mb/s 1260 ~1620 nm -9 to -28 dBm 1260 ~1620 nm -9 to -28 dBm LC SFP with DMI 0 ~ 70°C
SPS-9110VW-1RG 1-RX 50 ~ 3000 Mb/s 1260 ~1620 nm  0 to -20 dBm     LC SFP with DMI 0 ~ 70°C
SPS-9380VW-1RG 1-RX 50 ~ 3000 Mb/s 1260 ~1620 nm -9 to -28 dBm     LC SFP with DMI 0 ~ 70°C


DWDM: 3Gb/s SM Video SFP 1-Transmitter + 1-Receiver
Product Number Type Bit Rate Power Budget Package Temperature
Range
Data
Sheet
SPS-9350VW-DXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >20 dB LC SFP with DMI 0 ~ 70°C
SPS-9380VW-DXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >28 dB LC SFP with DMI 0 ~ 70°C
SPS-93120VW-DXX1RG 1-TX + 1-RX 50 ~3000 Mb/s >31 dB LC SFP with DMI 0 ~ 70°C


DWDM: 3Gb/s SM Video SFP Transceiver (same pin assignment as SFP_MSA)
Product Number Type Power Budget Package Temperature
Range
Data
Sheet
SPS-9350VW-DXXG 50 ~3000 Mb/s >20 dB LC SFP with DMI 0 ~ 70°C
SPS-9380VW-DXXG 50 ~3000 Mb/s >28 dB LC SFP with DMI 0 ~ 70°C
SPS-93120VW-DXXG 50 ~3000 Mb/s >31 dB LC SFP with DMI 0 ~ 70°C
