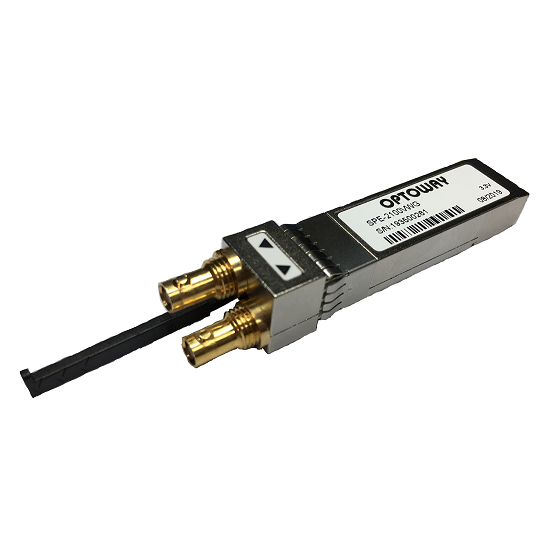

SFP+ Coaxial Transceiver

12G-SDI SFP+ Coaxial Transceiver

- Compliant with SFP+ MSA
-
Compliant ST2082, ST2081, ST424, ST292, ST259
- Hot-Pluggable SFP+ Footprint Coaxial Video Transceiver with Built-in Reclocker
- HD-BNC Connector Type
- Support Video Pathological Pattern for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
- Temperature and Voltage monitoring
- RoHS 6/6 Compliant



12G-SDI Video SFP+ HD-BNC Connector Assembly
Product Number Bit Rate Reach Package Temperature
Range
Data
Sheet
SPE-2100VWG Up to 11.88 Gb/s 30 m SFP+ with HD-BNC CONNECTOR    0 ~ 70 °C
SPE-2100AVWG Up to 11.88 Gb/s 30 m SFP+ with HD-BNC CONNECTOR -40 ~ 85 °C
