CWDM:12G-SDI SFP+

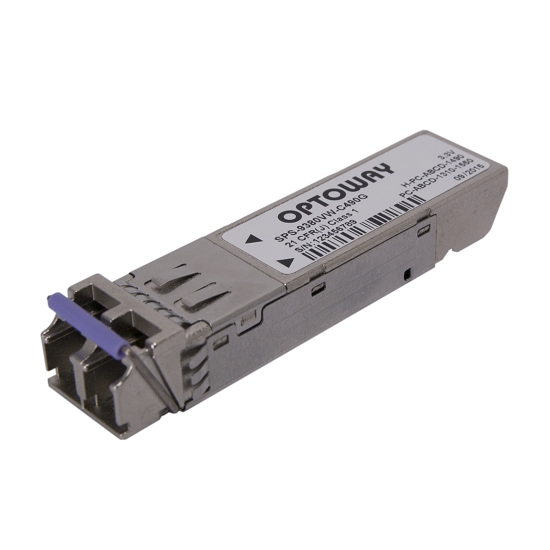

CWDM : 12Gb/s SM Video SFP+ Transmitter
Product Number Type Bit Rate TX1 TX2 Package Temperature
Range
Data
Sheet
Wavelength Power Wavelength Power
SPS-2310VW-CXXCYYG* 2-TX Up to 12 Gb/s CWDM  5 to 0 dBm CWDM  5 to 0 dBm LC SFP+ with DMI 0 ~ 70 °C
SPS-2340VW-CXXCYYG* 2-TX Up to 12 Gb/s CWDM  8 to 4 dBm CWDM  8 to 4 dBm LC SFP+ with DMI 0 ~ 70 °C
SPS-2310VW-CXXG* 1-TX Up to 12 Gb/s CWDM  5 to 0 dBm     LC SFP+ with DMI 0 ~ 70 °C
SPS-2340VW-CXXG* 1-TX Up to 12 Gb/s CWDM  8 to 4 dBm     LC SFP+ with DMI 0 ~ 70 °C
SPS-2312VW-CXXCYYG* 2-TX Up to 12 Gb/s CWDM  5 to 0 dBm CWDM  5 to 0 dBm LC SFP+ with DMI 0 ~ 70 °C
SPS-2342VW-CXXCYYG* 2-TX Up to 12 Gb/s CWDM  8 to 4 dBm CWDM  8 to 4 dBm LC SFP+ with DMI 0 ~ 70 °C
SPS-2312VW-CXXG* 1-TX Up to 12 Gb/s CWDM  5 to 0 dBm     LC SFP+ with DMI 0 ~ 70 °C
SPS-2342VW-CXXG* 1-TX Up to 12 Gb/s CWDM  8 to 4 dBm     LC SFP+ with DMI 0 ~ 70 °C
* XX is for Channel 1 and YY is for Channel 2 CWDM Wavelength


CWDM : 12Gb/s SM Video SFP+ 1-Transmitter + 1-Receiver
Product Number Type Bit Rate Power Budget Package Temperature
Range
Data
Sheet
SPS-2310VW-CXX1RG 1-TX + 1-RX Up to 12 Gb/s >13 dB LC SFP+ with DMI 0 ~ 70 °C
SPS-2340VW-CXX1RG 1-TX + 1-RX Up to 12 Gb/s >17 dB LC SFP+ with DMI 0 ~ 70 °C
SPS-2312VW-CXX1RG 1-TX + 1-RX Up to 12 Gb/s >13 dB LC SFP+ with DMI 0 ~ 70 °C
SPS-2342VW-CXX1RG 1-TX + 1-RX Up to 12 Gb/s >17 dB LC SFP+ with DMI 0 ~ 70 °C


CWDM : 12Gb/s SM Video SFP+ Transceiver (same pin assignment as SFP+ MSA)
Product Number Bit Rate Power Budget Package Temperature
Range
Data
Sheet
SPS-2310VW-CXX0G Up to 12 Gb/s >13 dB LC SFP+ with DMI 0 ~ 70 °C
SPS-2340VW-CXX0G Up to 12 Gb/s >17 dB LC SFP+ with DMI 0 ~ 70 °C
SPS-2312VW-CXX0G Up to 12 Gb/s >13 dB LC SFP+ with DMI 0 ~ 70 °C
SPS-2342VW-CXX0G Up to 12 Gb/s >17 dB LC SFP+ with DMI 0 ~ 70 °C
