1x9 CWDM

18-Channel CWDM

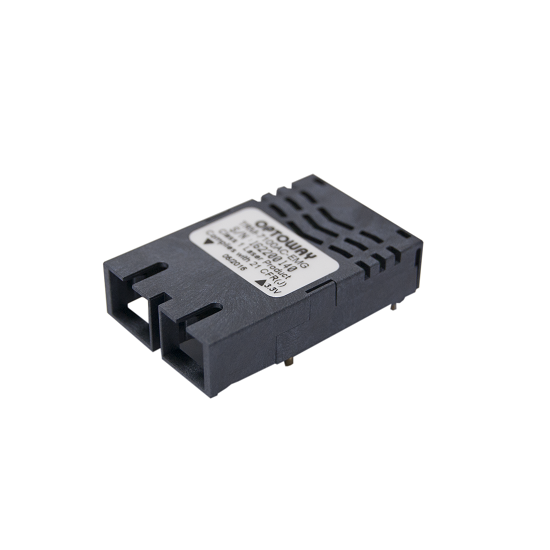

1X9 SM CWDM SC/FC/ST
Product Number Bit Rate 1000
BASE
Power
Budget
Wavelength Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
TRS-7350-CXX0G 1250 Mb/s XD >19 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C    0 to -5 dBm -24 dBm
TRS-7380-CXX0G 1250 Mb/s ZX >24 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C    5 to 0 dBm -24 dBm
TRS-7385-CXX0G 1250 Mb/s   >27 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C    5 to 0 dBm -27 dBm
TRS-73120-CXX0G 1250 Mb/s   >32 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C    5 to 0 dBm -32 dBm
TRS-73160-CXX0G 1250 Mb/s   >38 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C    6 to 3 dBm -35 dBm
TRS-7250-CXX0G 1250 Mb/s XD >19 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C    0 to -5 dBm -24 dBm
TRS-7280-CXX0G 1250 Mb/s ZX >24 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C    5 to 0 dBm -24 dBm
TRS-7285-CXX0G 1250 Mb/s   >27 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C    5 to 0 dBm -27 dBm
TRS-72120-CXX0G 1250 Mb/s   >32 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C    5 to 0 dBm -32 dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


1X9 SM CWDM SC/FC/ST
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
TRS-5380-CXX0G 622 Mb/s LR-2 >29 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -29 dBm
TRS-53120-CXX0G 622 Mb/s LR-2 >34 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-53160-CXX0G 622 Mb/s LR-2 >38 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 1 dBm -37 dBm
TRS-5280-CXX0G 622 Mb/s LR-2 >29 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -29 dBm
TRS-52120-CXX0G 622 Mb/s LR-2 >34 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-52160-CXX0G 622 Mb/s LR-2 >38 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 1 dBm -37 dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


1X9 SM CWDM SC/FC/ST
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
TRS-3380-CXX0G 155 Mb/s LR-2/L-1.2 >29 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-33100-CXX0G 155 Mb/s ELR >31 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-33120-CXX0G 155 Mb/s ELR >34 dB CWDM* 3.3 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-3280-CXX0G 155 Mb/s LR-2/L-1.2 >29 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-32100-CXX0G 155 Mb/s ELR >31 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0 dBm -34 dBm
TRS-32120-CXX0G 155 Mb/s ELR >34 dB CWDM*    5 V 1x9 SC/ST/FC   0 ~ 70°C   5 to 1 dBm -34 dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
