CWDM/DWDM

2.5 Gb/s CWDM

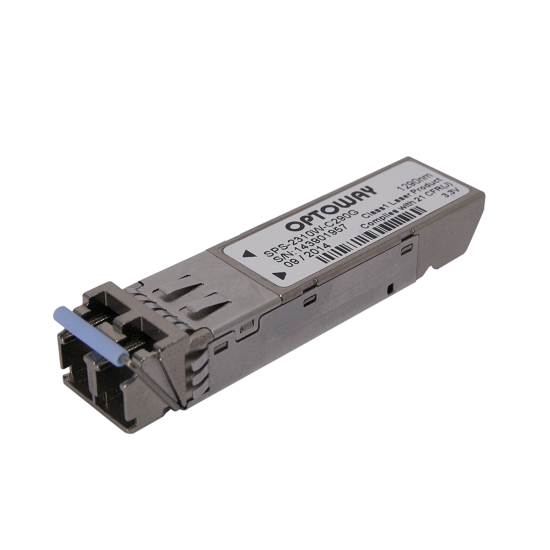

CWDM SFP SM LC
Product Number Bit Rate SONET
/SDH
Power Budget Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-9340-CXX0G 2.488 Gb/s IR-2/S-16.2 >18 dB CWDM* LC SFP    0 ~ 70°C 3 to -2 dBm -20 dBm
SPS-9340B-CXX0G 2.488 Gb/s IR-2/S-16.2 >18 dB CWDM* LC SFP   -5 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9340A-CXX0G 2.488 Gb/s IR-2/S-16.2 >18 dB CWDM* LC SFP -40 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9380-CXX0G 2.488 Gb/s LR-2/L-16.2 >28 dB CWDM* LC SFP    0 ~ 70°C 5 to 0 dBm -28 dBm
SPS-9380B-CXX0G 2.488 Gb/s LR-2/L-16.2 >28 dB CWDM* LC SFP   -5 ~ 85°C 5 to 0 dBm -28 dBm
SPS-9380A-CXX0G 2.488 Gb/s LR-2/L-16.2 >28 dB CWDM* LC SFP -40 ~ 85°C 5 to 0 dBm -28 dBm
SPS-93100-CXX0G 2.488 Gb/s LR-2/L-16.2 >31 dB CWDM* LC SFP    0 ~ 70°C 5 to 1 dBm -30 dBm
SPS-93100B-CXX0G 2.488 Gb/s LR-2/L-16.2 >31 dB CWDM* LC SFP   -5 ~ 85°C 5 to 1 dBm -30 dBm
SPS-93100A-CXX0G 2.488 Gb/s LR-2/L-16.2 >31 dB CWDM* LC SFP -40 ~ 85°C 5 to 1 dBm -30 dBm
SPS-93120-CXX0G 2.488 Gb/s LR-2/L-16.2 >33 dB CWDM* LC SFP    0 ~ 70°C 6 to 3 dBm -30 dBm
SPS-93120B-CXX0G 2.488 Gb/s LR-2/L-16.2 >33 dB CWDM* LC SFP   -5 ~ 85°C 6 to 3 dBm -30 dBm
SPS-93120A-CXX0G 2.488 Gb/s LR-2/L-16.2 >33 dB CWDM* LC SFP -40 ~ 85°C 6 to 3 dBm -30 dBm
SPS-9340W-CXX0G 2.488 Gb/s IR-2/S-16.2 >18 dB CWDM* LC SFP with DMI    0 ~ 70°C 3 to -2 dBm -20 dBm
SPS-9340BW-CXX0G 2.488 Gb/s IR-2/S-16.2 >18 dB CWDM* LC SFP with DMI   -5 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9340AW-CXX0G 2.488 Gb/s IR-2/S-16.2 >18 dB CWDM* LC SFP with DMI -40 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9380W-CXX0G 2.488 Gb/s LR-2/L-16.2 >28 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to 0 dBm -28 dBm
SPS-9380BW-CXX0G 2.488 Gb/s LR-2/L-16.2 >28 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to 0 dBm -28 dBm
SPS-9380AW-CXX0G 2.488 Gb/s LR-2/L-16.2 >28 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to 0 dBm -28 dBm
SPS-93100W-CXX0G 2.488 Gb/s LR-2/L-16.2 >31 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to 1 dBm -30 dBm
SPS-93100BW-CXX0G 2.488 Gb/s LR-2/L-16.2 >31 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to 1 dBm -30 dBm
SPS-93100AW-CXX0G 2.488 Gb/s LR-2/L-16.2 >31 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to 1 dBm -30 dBm
SPS-93120W-CXX0G 2.488 Gb/s LR-2/L-16.2 >33 dB CWDM* LC SFP with DMI    0 ~ 70°C 6 to 3 dBm -30 dBm
SPS-93120BW-CXX0G 2.488 Gb/s LR-2/L-16.2 >33 dB CWDM* LC SFP with DMI   -5 ~ 85°C 6 to 3 dBm -30 dBm
SPS-93120AW-CXX0G 2.488 Gb/s LR-2/L-16.2 >33 dB CWDM* LC SFP with DMI -40 ~ 85°C 6 to 3 dBm -30 dBm
*18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm


SFF SM LC
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-9340-CXX0G 2.488 Gb/s   >18 dB CWDM* 2x5 LC    0 ~ 70 °C 3 to  -2 dBm -20 dBm
TRSL-9380-CXX0G 2.488 Gb/s   >28 dB CWDM* 2x5 LC    0 ~ 70 °C 5 to 10 dBm -28 dBm
TRSL-9340W-CXX0G 2.488 Gb/s   >18 dB CWDM* 2x10 LC    0 ~ 70 °C 3 to  -2 dBm -20 dBm
 *18-Wavelength from 1270 nm to 1610 nm, each step 20 nm.
