2G/1G FC CWDM

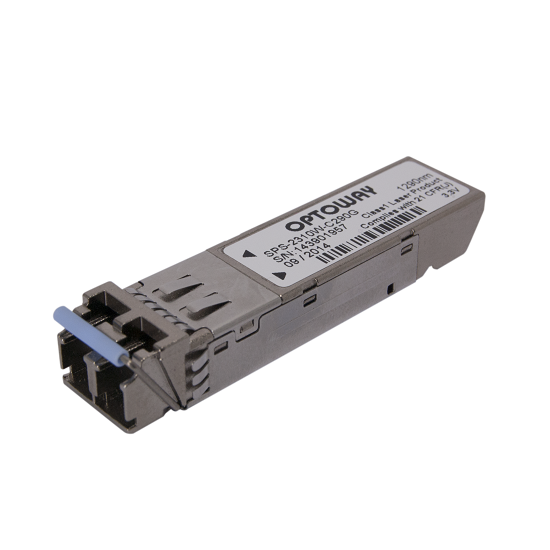

SFP SM LC
Product Number Bit Rate FC-PI Power Budget Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-9380F-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* LC SFP    0 ~ 70°C 5 to 0 dBm -23 dBm
SPS-9380BF-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* LC SFP   -5 ~ 85°C 5 to 0 dBm -23 dBm
SPS-9380AF-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* LC SFP -40 ~ 85°C 5 to 0 dBm -23 dBm
SPS-93120F-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* LC SFP    0 ~ 70°C 5 to 0 dBm -30 dBm
SPS-93120BF-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* LC SFP   -5 ~ 85°C 5 to 0 dBm -30 dBm
SPS-93120AF-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* LC SFP -40 ~ 85°C 5 to 0 dBm -30 dBm
SPS-9380FW-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to 0 dBm -23 dBm
SPS-9380BFW-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to 0 dBm -23 dBm
SPS-9380AFW-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to 0 dBm -23 dBm
SPS-93120FW-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to 0 dBm -30 dBm
SPS-93120BFW-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to 0 dBm -30 dBm
SPS-93120AFW-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to 0 dBm -30 dBm
**CWDM Wavelength : 18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm


SFF SM LC
Product Number Bit Rate FC-PI Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-9380F-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* 2x5 LC    0 ~ 70 °C  5 to 0 dBm -23 dBm
TRSL-93120F-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* 2x5 LC    0 ~ 70 °C  5 to 0 dBm -30 dBm
CWDM *  18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


SM GBIC SC
Product Number Bit Rate SONET
/SDH
Power Budget Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBS-9280F-CXX0G 2.125/1.063 Gb/s 200/100 >24 dB CWDM* SC GBIC   0 ~ 70°C 5 to 0 dBm -24 dBm
GBS-92120F-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* SC GBIC   0 ~ 70°C 5 to 0 dBm -30 dBm
*CWDM Wavelength : 18 Wavelength from 1270 nm to 1610 nm , each step 20 nm
