PRODUCTS
Transmitter

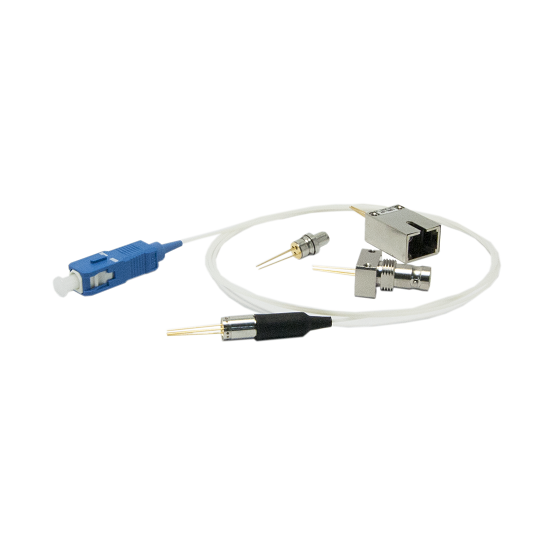

DFB LD - 1625nm


TO Package
Product Number Wavelength Speed Pout Temperature Package Data
Sheet
DL-5100-1625 1625nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-5120-1625 1625nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-5100S-1625 1625nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-5120S-1625 1625nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap


Pigtail Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-5320-1625 1625nm 1.25Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5330-1625 1625nm 1.25Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5320S-1625 1625nm 2.5Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5330S--1625 1625nm 2.5Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-5520-1625 1625nm 1.25Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5530-1625 1625nm 1.25Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5520S-1625 1625nm 2.5Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5530S-1625 1625nm 2.5Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
