PRODUCTS
Transmitter

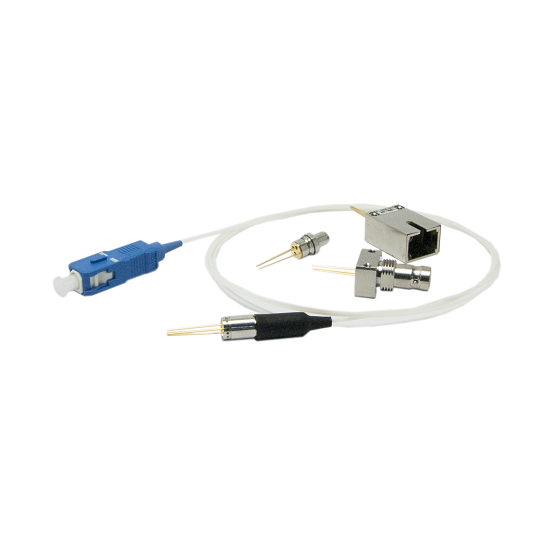

DFB LD - 1550nm


TO Package
Product Number Wavelength Speed Pout Temperature Package Data
Sheet
DL-5100 1550nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-5120 1550nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-5140 1550nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, 2 mm Ball Lens Cap
DL-5100S 1550nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-5120S 1550nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-5140S 1550nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, 2 mm Ball Lens Cap


Pigtail Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-5300 1550nm 1.25Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5310 1550nm 1.25Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5320 1550nm 1.25Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5330 1550nm 1.25Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5340 1550nm 1.25Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5300S 1550nm 2.5Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5310S 1550nm 2.5Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5320S 1550nm 2.5Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5330S 1550nm 2.5Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5340S 1550nm 2.5Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-5500 1550nm 1.25Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5510 1550nm 1.25Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5520 1550nm 1.25Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5530 1550nm 1.25Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5540 1550nm 1.25Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5500S 1550nm 2.5Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5510S 1550nm 2.5Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5520S 1550nm 2.5Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5530S 1550nm 2.5Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5540S 1550nm 2.5Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
