PRODUCTS
Transmitter

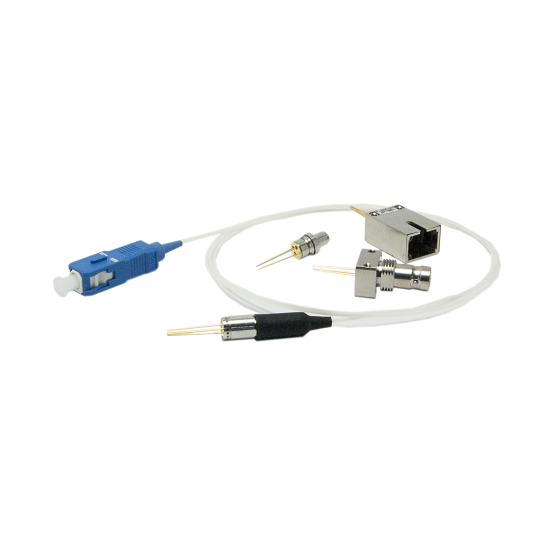

DFB LD - 1310nm

TO Package
Product Number Wavelength Speed Pout Temperature Package Data
Sheet
DL-3100 1310nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-3120 1310nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-3140 1310nm 1.25Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, 2 mm Ball Lens Cap
DL-3100S 1310nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-3120S 1310nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-3140S 1310nm 2.5Gb/s 5mW 0 ~ 70°C TO-18, 4-pin, 2 mm Ball Lens Cap


Pigtail Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-3300 1310nm 1.25Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3310 1310nm 1.25Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3320 1310nm 1.25Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3330 1310nm 1.25Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3340 1310nm 1.25Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3300S 1310nm 2.5Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3310S 1310nm 2.5Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3320S 1310nm 2.5Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3330S 1310nm 2.5Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3340S 1310nm 2.5Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-3500 1310nm 1.25Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3510 1310nm 1.25Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3520 1310nm 1.25Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3530 1310nm 1.25Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3540 1310nm 1.25Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3500S 1310nm 2.5Gb/s 0.2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3510S 1310nm 2.5Gb/s 0.5mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3520S 1310nm 2.5Gb/s 1mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3530S 1310nm 2.5Gb/s 2mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-3540S 1310nm 2.5Gb/s 3mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
