Transmitter

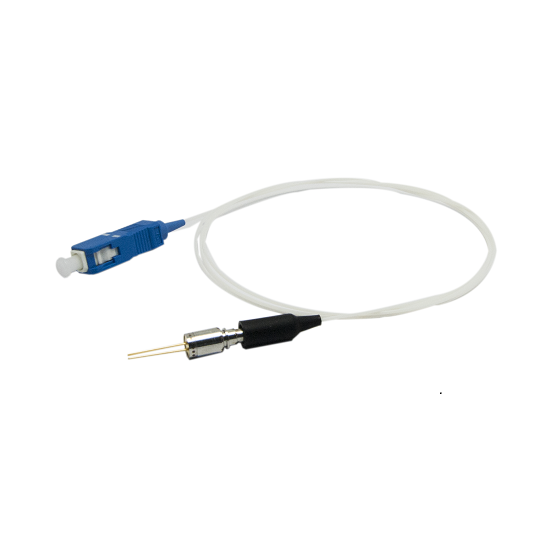

Analog Laser: CATV & Wireless

- CATV return path applications
- CDMA / W-CDMA 1.8GHz/2.2GHz applications
- RF over Fibre
- Wide operating temperature range
- RoHS Compliant


CATV: Return Path
Product Number Wavelength Pout Isolator Package Data
Sheet
FL-330XAR-XXXS 1310nm 0.2mW Yes Coaxial Pigtail
FL-331XAR-XXXS 1310nm 0.5mW Yes Coaxial Pigtail
FL-332XAR-XXXS 1310nm   1mW Yes Coaxial Pigtail
FL-333XAR-XXXS 1310nm   2mW Yes Coaxial Pigtail
FL-334XAR-XXXS 1310nm   3mW Yes Coaxial Pigtail
DL-330XAR-XXXS 1310nm DFB 0.2mW Yes Coaxial Pigtail
DL-331XAR-XXXS 1310nm DFB 0.5mW Yes Coaxial Pigtail
DL-332XAR-XXXS 1310nm DFB   1mW Yes Coaxial Pigtail
DL-333XAR-XXXS 1310nm DFB   2mW Yes Coaxial Pigtail
DL-334XAR-XXXS 1310nm DFB   3mW Yes Coaxial Pigtail
DL-335XAR-XXXS 1310nm DFB   4mW Yes Coaxial Pigtail
DL-530XAR-XXXS 1550nm DFB 0.2mW Yes Coaxial Pigtail
DL-531XAR-XXXS 1550nm DFB 0.5mW Yes Coaxial Pigtail
DL-532XAR-XXXS 1550nm DFB   1mW Yes Coaxial Pigtail
DL-533XAR-XXXS 1550nm DFB   2mW Yes Coaxial Pigtail
DL-534XAR-XXXS 1550nm DFB   3mW Yes Coaxial Pigtail
DL-535XAR-XXXS 1550nm DFB   4mW Yes Coaxial Pigtail
DL-530XAR-CXX0-XXXS CWDM* 0.2mW Yes Coaxial Pigtail
DL-531XAR-CXX0-XXXS CWDM* 0.5mW Yes Coaxial Pigtail
DL-532XAR-CXX0-XXXS CWDM*   1mW Yes Coaxial Pigtail
DL-533XAR-CXX0-XXXS CWDM*   2mW Yes Coaxial Pigtail
DL-534XAR-CXX0-XXXS CWDM*   3mW Yes Coaxial Pigtail
DL-535XAR-CXX0-XXXS CWDM*   4mW Yes Coaxial Pigtail



Wireless : CDMA (900 MHz)
Product Number Wavelength Pout Isolator Package Data
Sheet
DL-3338AC-XXXS 1310nm DFB 2mW Yes Coaxial Pigtail
DL-3348AC-XXXS 1310nm DFB 3mW Yes Coaxial Pigtail
DL-3358AC-XXXS 1310nm DFB 4mW Yes Coaxial Pigtail
DL-5338AC-XXXS 1550nm DFB 2mW Yes Coaxial Pigtail
DL-5348AC-XXXS 1550nm DFB 3mW Yes Coaxial Pigtail
DL-5358AC-XXXS 1550nm DFB 4mW Yes Coaxial Pigtail
DL-5338AC-CXX0-XXXS CWDM* 2mW Yes Coaxial Pigtail
DL-5348AC-CXX0-XXXS CWDM* 3mW Yes Coaxial Pigtail
DL-5358AC-CXX0-XXXS CWDM* 4mW Yes Coaxial Pigtail
*1470 to 1610 nm, with step 20 nm


Wireless : W-CDMA (1.8 / 2.2 GHz)
Product Number Wavelength Pout Isolator Package Data
Sheet
DL-3338AW-XXXS 1310nm DFB 2mW Yes Coaxial Pigtail
DL-3348AW-XXXS 1310nm DFB 3mW Yes Coaxial Pigtail
DL-3358AW-XXXS 1310nm DFB 4mW Yes Coaxial Pigtail
DL-5338AW-XXXS 1550nm DFB 2mW Yes Coaxial Pigtail
DL-5348AW-XXXS 1550nm DFB 3mW Yes Coaxial Pigtail
DL-5358AW-XXXS 1550nm DFB 4mW Yes Coaxial Pigtail
DL-5338AW-CXX0-XXXS CWDM* 2mW Yes Coaxial Pigtail
DL-5348AW-CXX0-XXXS CWDM* 3mW Yes Coaxial Pigtail
DL-5358AW-CXX0-XXXS CWDM* 4mW Yes Coaxial Pigtail
*1470 to 1610 nm, with step 20 nm


Related Product : Analog Photodiodes
Product Number Speed Wavelength Fiber IMD2 IMD3 Temperature Package  Data
Sheet
PDA-1300 1 GHz 1310/1550nm SMF -70dBc -80dBc -40 ~ 85°C Coaxial Pigtail
PDA-1500-SA 1 GHz 1310/1550nm SMF -70dBc -80dBc -40 ~ 85°C SC/APC Receptacle
PDA-1500-FA 1 GHz 1310/1550nm SMF -70dBc -80dBc -40 ~ 85°C FC/APC Receptacle
PDA-1300-3 3 GHz 1310/1550nm SMF -70dBc -80dBc -40 ~ 85°C Coaxial Pigtail
