PRODUCTS

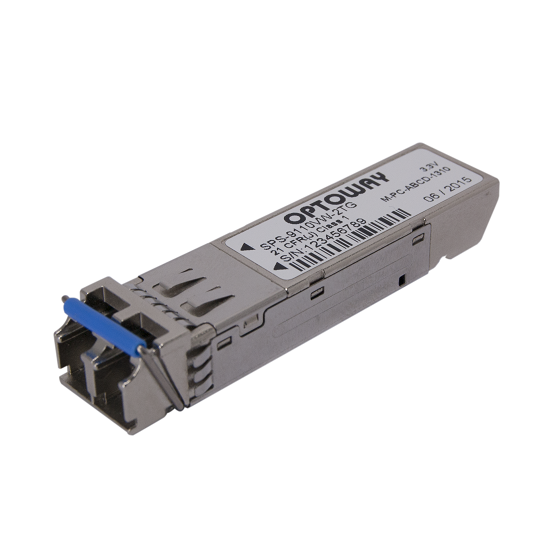

2-Fiber Bi-Directional CSFP/CSFP+

10Gb/s 2-Fiber CSFP+

- 2-Fiber Bi-Directional CSFP+ Optical Transceiver
- Compliant with CSFP MSA 2.0 (Option2)
-
Compliant with IEEE 802.3ae 10GBASE-BX
- SFF-8472 Digital Diagnostic Function
- Duplex LC Connector

- CH1: 1270 nm DFB TX/1330 nm RX
-
CH2: 1330 nm DFB TX/1270 nm RX
- RoHS-6 Compliant (lead-free)


10Gb/s 2-Fiber CSFP+
Product Number Bit Rate 10GBASE Reach TX RX Package Temperature
Range
Data
Sheet
CSP-2720WG Up to 10.3 Gb/s BX  20 km CH1: 1270 DFB
CH2: 1330 DFB
CH1: 1330
CH2: 1270
LC CSFP+ with DMI    0 to 70 oC
CSP-2720BWG Up to 10.3 Gb/s BX  20 km CH1: 1270 DFB
CH2: 1330 DFB
CH1: 1330
CH2: 1270
LC CSFP+ with DMI  -20 to 85 oC
CSP-2720AWG Up to 10.3 Gb/s BX  20 km CH1: 1270 DFB
CH2: 1330 DFB
CH1: 1330
CH2: 1270
LC CSFP+ with DMI  -40 to 85 oC
