SFF

2.5Gb/s 2-fiber

OC-48 / STM-16 : 2.488 Gbps

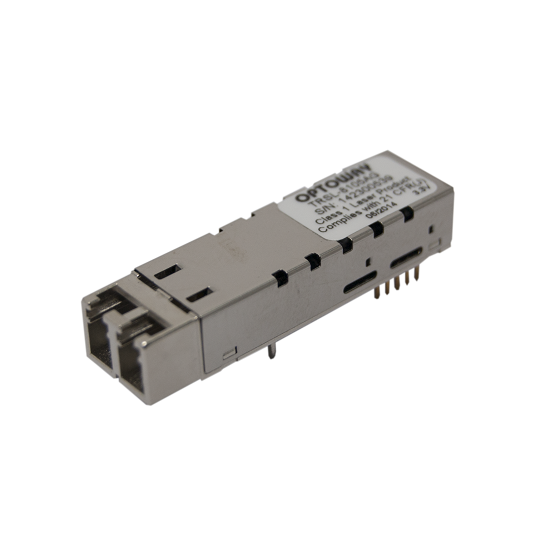

- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- 1310 nm and 1550 nm Long-wavelength for Single-mode Fiber Applications
- 850 nm Short-wavelength for Multi-mode Fiber Applications
- Compliant Models for STM-16/OC-48 SR, IR and LR
- Single 3.3V Supply
- RoHS Compliant



SFF MM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-9100G 2.5 Gb/s   150*/300 m** 850 nm 2x5 LC    0 ~ 70°C -4 to -9 dBm -15 dBm
TRML-9100AG 2.5 Gb/s   150*/300 m** 850 nm 2x5 LC -40 ~ 85°C -4 to -9 dBm -15 dBm
*using 62.5/125 µm MM optic cable  **using 50/125 µm MM optic cable


SFF SM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-9102G 2.488 Gb/s SR/I-16   2 km 1310 nm 2x5 LC    0 ~ 70 °C -3 to -9.5 dBm -18dBm
TRSL-9102AG 2.488 Gb/s SR/I-16   2 km 1310 nm 2x5 LC -40 ~ 85 °C -3 to -9.5 dBm -18dBm
TRSL-9115G 2.488 Gb/s IR-1/S-16.1 15 km 1310 nm DFB 2x5 LC    0 ~ 70 °C  0 to    -5 dBm -18dBm
TRSL-9115AG 2.488 Gb/s IR-1/S-16.1 15 km 1310 nm DFB 2x5 LC -40 ~ 85 °C  0 to    -5 dBm -18 dBm
TRSL-9340G 2.488 Gb/s IR-2/S-16.2 40 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  3 to    -2 dBm -20 dBm
TRSL-9340AG 2.488 Gb/s IR-2/S-16.2 40 km 1550 nm DFB 2x5 LC -40 ~ 85 °C  3 to    -2 dBm -20 dBm
TRSL-9140G 2.488 Gb/s IR-1/S-16.1 40 km 1310 nm DFB 2x5 LC    0 ~ 70 °C  3 to    -2 dBm -28 dBm
TRSL-9140AG 2.488 Gb/s IR-1/S-16.1 40 km 1310 nm DFB 2x5 LC -40 ~ 85 °C  3 to    -2 dBm -28 dBm
TRSL-9380G 2.488 Gb/s IR-2/S-16.2 80 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  3 to    -2 dBm -28 dBm
TRSL-9102WG 2.488 Gb/s SR/I-16   2 km 1310 nm 2x10 LC    0 ~ 70 °C -3 to -9.5 dBm -18 dBm
TRSL-9102AWG 2.488 Gb/s SR/I-16   2 km 1310 nm 2x10 LC -40 ~ 85 °C -3 to -9.5 dBm -18 dBm
TRSL-9115WG 2.488 Gb/s IR-1/S-16.1 15 km 1310 nm DFB 2x10 LC    0 ~ 70 °C  0 to    -5 dBm -18 dBm
TRSL-9115AWG 2.488 Gb/s IR-1/S-16.1 15 km 1310 nm DFB 2x10 LC -40 ~ 85 °C  0 to    -5 dBm -18 dBm
TRSL-9340WG 2.488 Gb/s IR-2/S-16.2 40 km 1550 nm DFB 2x10 LC    0 ~ 70 °C  3 to    -2 dBm -20 dBm
TRSL-9340AWG 2.488 Gb/s IR-2/S-16.2 40 km 1550 nm DFB 2x10 LC -40 ~ 85 °C  3 to    -2 dBm -20 dBm


CWDM SFF SM LC
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-9340-CXX0G 2.488 Gb/s   >18 dB CWDM* 2x5 LC    0 ~ 70 °C 3 to  -2 dBm -20 dBm
TRSL-9380-CXX0G 2.488 Gb/s   >28 dB CWDM* 2x5 LC    0 ~ 70 °C 5 to   0 dBm -28 dBm
TRSL-9340W-CXX0G 2.488 Gb/s   >18 dB CWDM* 2x10 LC    0 ~ 70 °C 3 to  -2 dBm -20 dBm
 *18-Wavelength from 1270 nm to 1610 nm, each step 20 nm.
