100Mbps to 622Mbps

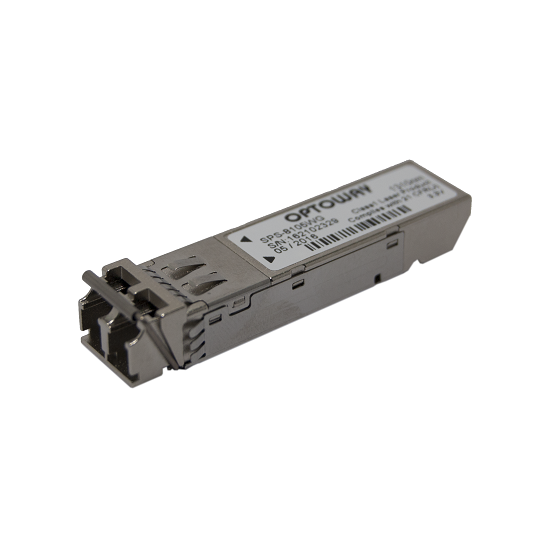

155Mb/s SFP 2-fiber

SFP MM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPM-3102G 125/155 Mb/s   0~2000 m 1310 nm LC SFP    0 ~ 70°C -12 to -19 dBm -30 dBm
SPM-3102BG 125/155 Mb/s   0~2000 m 1310 nm LC SFP -10 ~ 85°C -12 to -19 dBm -30 dBm
SPM-3102AG 125/155 Mb/s   0~2000 m 1310 nm LC SFP -40 ~ 85°C -12 to -19 dBm -30 dBm
SPM-3102WG 125/155 Mb/s   0~2000 m 1310 nm LC SFP with DMI    0 ~ 70°C -12 to -19 dBm -30 dBm
SPM-3102BWG 125/155 Mb/s   0~2000 m 1310 nm LC SFP with DMI -10 ~ 85°C -12 to -19 dBm -30 dBm
SPM-3102AWG 125/155 Mb/s   0~2000 m 1310 nm LC SFP with DMI -40 ~ 85°C -12 to -19 dBm -30 dBm


SFP SM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-3120G 125/155 Mb/s IR-1/S-1.1   20 km 1310 nm LC SFP    0 ~ 70°C -8 to -14 dBm -31 dBm
SPS-3120AG 125/155 Mb/s IR-1/S-1.1   20 km 1310 nm LC SFP -40 ~ 85°C -8 to -14 dBm -31 dBm
SPS-3131G 125/155 Mb/s IR-1/S-1.1   30 km 1310 nm LC SFP    0 ~ 70°C -8 to -14 dBm -34 dBm
SPS-3130G 125/155 Mb/s IR-1/S-1.1   30 km 1310 nm LC SFP -10 ~ 85°C -8 to -14 dBm -34 dBm
SPS-3130AG 125/155 Mb/s IR-1/S-1.1   30 km 1310 nm LC SFP -40 ~ 85°C -8 to -14 dBm -34 dBm
SPS-3151G 125/155 Mb/s LR-1/L-1.1   50 km 1310 nm LC SFP    0 ~ 70°C  0 to   -5 dBm -34 dBm
SPS-3150G 125/155 Mb/s LR-1/L-1.1   50 km 1310 nm LC SFP -10 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-3150AG 125/155 Mb/s LR-1/L-1.1   50 km 1310 nm LC SFP -40 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-3380G 125/155 Mb/s LR-2/L-1.2   80 km 1550 nm DFB LC SFP    0 ~ 70°C  0 to   -5 dBm -34 dBm
SPS-3380BG 125/155 Mb/s LR-2/L-1.2   80 km 1550 nm DFB LC SFP -10 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-3380AG 125/155 Mb/s LR-2/L-1.2   80 km 1550 nm DFB LC SFP -40 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-33100G 125/155 Mb/s   100 km 1550 nm DFB LC SFP    0 ~ 70°C  2 to   -3 dBm -34 dBm
SPS-33100BG 125/155 Mb/s   100 km 1550 nm DFB LC SFP -10 ~ 85°C  2 to   -3 dBm -34 dBm
SPS-33100AG 125/155 Mb/s   100 km 1550 nm DFB LC SFP -40 ~ 85°C  2 to   -3 dBm -34 dBm
SPS-33120G 125/155 Mb/s   120 km 1550 nm DFB LC SFP    0 ~ 70°C  5 to    0 dBm -34 dBm
SPS-33120BG 125/155 Mb/s   120 km 1550 nm DFB LC SFP -10 ~ 85°C  5 to    0 dBm -34 dBm
SPS-33120AG 125/155 Mb/s   120 km 1550 nm DFB LC SFP -40 ~ 85°C  5 to    0 dBm -34 dBm
SPS-33160G 125/155 Mb/s   160 km 1550 nm DFB LC SFP    0 ~ 70°C  5 to    2 dBm -35 dBm
SPS-33160BG 125/155 Mb/s   160 km 1550 nm DFB LC SFP -10 ~ 85°C  5 to    2 dBm -35 dBm
SPS-33160AG 125/155 Mb/s   160 km 1550 nm DFB LC SFP -40 ~ 85°C  5 to    2 dBm -35 dBm
SPS-33200G 125/155 Mb/s   200 km 1550 nm DFB LC SFP    0 ~ 70°C  5 to    1 dBm -45 dBm
SPS-33200BG 125/155 Mb/s   200 km 1550 nm DFB LC SFP -10 ~ 85°C  5 to    1 dBm -45 dBm
SPS-33200AG 125/155 Mb/s   200 km 1550 nm DFB LC SFP -40 ~ 85°C  5 to    1 dBm -45 dBm
SPS-33240G 125/155 Mb/s   240 km 1550 nm DFB LC SFP    0 ~ 70°C  8 to    5 dBm -45 dBm
SPS-33240BG 125/155 Mb/s   240 km 1550 nm DFB LC SFP -10 ~ 85°C  8 to    5 dBm -45 dBm
SPS-33240AG 125/155 Mb/s   240 km 1550 nm DFB LC SFP -40 ~ 85°C  8 to    5 dBm -45 dBm
SPS-3120WG 125/155 Mb/s IR-1/S-1.1   20 km 1310 nm LC SFP with DMI    0 ~ 70°C -8 to -14 dBm -31 dBm
SPS-3120AWG 125/155 Mb/s IR-1/S-1.1   20 km 1310 nm LC SFP with DMI -40 ~ 85°C -8 to -14 dBm -31 dBm
SPS-3130WG 125/155 Mb/s IR-1/S-1.1   30 km 1310 nm LC SFP with DMI -10 ~ 85°C -8 to -14 dBm -34 dBm
SPS-3130AWG 125/155 Mb/s IR-1/S-1.1   30 km 1310 nm LC SFP with DMI -40 ~ 85°C -8 to -14 dBm -34 dBm
SPS-3131WG 125/155 Mb/s IR-1/S-1.1   30 km 1310 nm LC SFP with DMI    0 ~ 70°C -8 to -14 dBm -34 dBm
SPS-3150WG 125/155 Mb/s LR-1/L-1.1   50 km 1310 nm LC SFP with DMI -10 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-3150AWG 125/155 Mb/s LR-1/L-1.1   50 km 1310 nm LC SFP with DMI -40 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-3151WG 125/155 Mb/s LR-1/L-1.1   50 km 1310 nm LC SFP with DMI    0 ~ 70°C  0 to   -5 dBm -34 dBm
SPS-3380WG 125/155 Mb/s LR-2/L-1.2   80 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  0 to   -5 dBm -34 dBm
SPS-3380BWG 125/155 Mb/s LR-2/L-1.2   80 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-3380AWG 125/155 Mb/s LR-2/L-1.2   80 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  0 to   -5 dBm -34 dBm
SPS-33100WG 125/155 Mb/s   100 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  2 to   -3 dBm -34 dBm
SPS-33100BWG 125/155 Mb/s   100 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  2 to   -3 dBm -34 dBm
SPS-33100AWG 125/155 Mb/s   100 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  2 to   -3 dBm -34 dBm
SPS-33120WG 125/155 Mb/s   120 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  5 to    0 dBm -34 dBm
SPS-33120BWG 125/155 Mb/s   120 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  5 to    0 dBm -34 dBm
SPS-33120AWG 125/155 Mb/s   120 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  5 to    0 dBm -34 dBm
SPS-33160WG 125/155 Mb/s   160 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  5 to    2 dBm -35 dBm
SPS-33160BWG 125/155 Mb/s   160 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  5 to    2 dBm -35 dBm
SPS-33160AWG 125/155 Mb/s   160 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  5 to    2 dBm -35 dBm
SPS-33200WG 125/155 Mb/s   200 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  5 to    1 dBm -45 dBm
SPS-33200BWG 125/155 Mb/s   200 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  5 to    1 dBm -45 dBm
SPS-33200AWG 125/155 Mb/s   200 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  5 to    1 dBm -45 dBm
SPS-33240WG 125/155 Mb/s   240 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  8 to    5 dBm -45 dBm
SPS-33240BWG 125/155 Mb/s   240 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  8 to    5 dBm -45 dBm
SPS-33240AWG 125/155 Mb/s   240 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  8 to    5 dBm -45 dBm


CWDM SFP SM LC
Product Number Bit Rate SONET
/SDH
Power Budget Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-3380-CXX0G 125/155 Mb/s   >29 dB CWDM* LC SFP    0 ~ 70°C 0 to -5 dBm -34 dBm
SPS-3380B-CXX0G 125/155 Mb/s   >29 dB CWDM* LC SFP   -5 ~ 85°C 0 to -5 dBm -34 dBm
SPS-3380A-CXX0G 125/155 Mb/s   >29 dB CWDM* LC SFP -40 ~ 85°C 0 to -5 dBm -34 dBm
SPS-33100-CXX0G 125/155 Mb/s   >31 dB CWDM* LC SFP    0 ~ 70°C 2 to -3 dBm -34 dBm
SPS-33100B-CXX0G 125/155 Mb/s   >31 dB CWDM* LC SFP   -5 ~ 85°C 2 to -3 dBm -34 dBm
SPS-33100A-CXX0G 125/155 Mb/s   >31 dB CWDM* LC SFP -40 ~ 85°C 2 to -3 dBm -34 dBm
SPS-33120-CXX0G 125/155 Mb/s   >34 dB CWDM* LC SFP    0 ~ 70°C 5 to  0 dBm -34 dBm
SPS-33120B-CXX0G 125/155 Mb/s   >34 dB CWDM* LC SFP   -5 ~ 85°C 5 to  0 dBm -34 dBm
SPS-33120A-CXX0G 125/155 Mb/s   >34 dB CWDM* LC SFP -40 ~ 85°C 5 to  0 dBm -34 dBm
SPS-33160-CXX0G 125/155 Mb/s   >37 dB CWDM* LC SFP    0 ~ 70°C 5 to  2 dBm -35 dBm
SPS-33160B-CXX0G 125/155 Mb/s   >37 dB CWDM* LC SFP   -5 ~ 85°C 5 to  2 dBm -35 dBm
SPS-33160A-CXX0G 125/155 Mb/s   >37 dB CWDM* LC SFP -40 ~ 85°C 5 to  2 dBm -35 dBm
SPS-33200-CXX0G 125/155 Mb/s   >46 dB CWDM* LC SFP    0 ~ 70°C 5 to  1 dBm -45 dBm
SPS-33200B-CXX0G 125/155 Mb/s   >46 dB CWDM* LC SFP   -5 ~ 85°C 5 to  1 dBm -45 dBm
SPS-33200A-CXX0G 125/155 Mb/s   >46 dB CWDM* LC SFP -40 ~ 85°C 5 to  1 dBm -45 dBm
SPS-33201-CXX0G 125/155 Mb/s   >47 dB CWDM* LC SFP    0 ~ 70°C 6 to  2 dBm -45 dBm
SPS-33201B-CXX0G 125/155 Mb/s   >47 dB CWDM* LC SFP   -5 ~ 85°C 6 to  2 dBm -45 dBm
SPS-33201A-CXX0G 125/155 Mb/s   >47 dB CWDM* LC SFP -40 ~ 85°C 6 to  2 dBm -45 dBm
SPS-33240-CXX0G 125/155 Mb/s   >50 dB CWDM* LC SFP    0 ~ 70°C 8 to  5 dBm -45 dBm
SPS-33240B-CXX0G 125/155 Mb/s   >50 dB CWDM* LC SFP   -5 ~ 85°C 8 to  5 dBm -45 dBm
SPS-33240A-CXX0G 125/155 Mb/s   >50 dB CWDM* LC SFP -40 ~ 85°C 8 to  5 dBm -45 dBm
SPS-3380W-CXX0G 125/155 Mb/s   >29 dB CWDM* LC SFP with DMI    0 ~ 70°C 0 to -5 dBm -34 dBm
SPS-3380BW-CXX0G 125/155 Mb/s   >29 dB CWDM* LC SFP with DMI   -5 ~ 85°C 0 to -5 dBm -34 dBm
SPS-3380AW-CXX0G 125/155 Mb/s   >29 dB CWDM* LC SFP with DMI -40 ~ 85°C 0 to -5 dBm -34 dBm
SPS-33100W-CXX0G 125/155 Mb/s   >31dB CWDM* LC SFP with DMI    0 ~ 70°C 2 to -3 dBm -34 dBm
SPS-33100BW-CXX0G 125/155 Mb/s   >31dB CWDM* LC SFP with DMI   -5 ~ 85°C 2 to -3 dBm -34 dBm
SPS-33100AW-CXX0G 125/155 Mb/s   >31dB CWDM* LC SFP with DMI -40 ~ 85°C 2 to -3 dBm -34 dBm
SPS-33120W-CXX0G 125/155 Mb/s   >34 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to  0 dBm -34 dBm
SPS-33120BW-CXX0G 125/155 Mb/s   >34 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to  0 dBm -34  dBm
SPS-33120AW-CXX0G 125/155 Mb/s   >34 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to  0 dBm -34  dBm
SPS-33160W-CXX0G 125/155 Mb/s   >37 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to  2 dBm -35 dBm
SPS-33160BW-CXX0G 125/155 Mb/s   >37 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to  2 dBm -35 dBm
SPS-33160AW-CXX0G 125/155 Mb/s   >37 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to  2 dBm -35 dBm
SPS-33200W-CXX0G 125/155 Mb/s   >46 dB CWDM* LC SFP with DMI    0 ~ 70°C 5 to  1 dBm -45 dBm
SPS-33200BW-CXX0G 125/155 Mb/s   >46 dB CWDM* LC SFP with DMI   -5 ~ 85°C 5 to   1dBm -45 dBm
SPS-33200AW-CXX0G 125/155 Mb/s   >46 dB CWDM* LC SFP with DMI -40 ~ 85°C 5 to   1dBm -45 dBm
SPS-33201W-CXX0G 125/155 Mb/s   >47 dB CWDM* LC SFP with DMI    0 ~ 70°C 6 to  2 dBm -45 dBm
SPS-33201BW-CXX0G 125/155 Mb/s   >47 dB CWDM* LC SFP with DMI   -5 ~ 85°C 6 to  2 dBm -45 dBm
SPS-33201AW-CXX0G 125/155 Mb/s   >47 dB CWDM* LC SFP with DMI -40 ~ 85°C 6 to  2 dBm -45 dBm
SPS-33240W-CXX0G 125/155 Mb/s   >50 dB CWDM* LC SFP with DMI    0 ~ 70°C 8 to  5 dBm -45 dBm
SPS-33240BW-CXX0G 125/155 Mb/s   >50 dB CWDM* LC SFP with DMI   -5 ~ 85°C 8 to  5 dBm -45 dBm
SPS-33240AW-CXX0G 125/155 Mb/s   >50 dB CWDM* LC SFP with DMI -40 ~ 85°C 8 to  5 dBm -45 dBm
*18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm


DWDM SFP SM LC
Product Number Bit Rate SONET
/SDH
Power Budget Spacing / Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-3380W-DXXG 125/155 Mb/s LR-2/L-1.2 >29 dB 100GHz with DWDM SFP with DMI   0 ~ 70°C 0 to -5 dBm -34 dBm
SPS-3380BW-DXXG 125/155 Mb/s LR-2/L-1.2 >29 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 0 to -5 dBm -34 dBm
SPS-3380AW-DXXG 125/155 Mb/s LR-2/L-1.2 >29 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 0 to -5 dBm -34 dBm
SPS-33120W-DXXG 125/155 Mb/s   >34 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 5 to 0 dBm -34 dBm
SPS-33120BW-DXXG 125/155 Mb/s   >34 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 5 to 0 dBm -34 dBm
SPS-33120AW-DXXG 125/155 Mb/s   >34 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 5 to 0 dBm -34 dBm
SPS-33160W-DXXG 125/155 Mb/s   >37 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 5 to 2 dBm -35 dBm
SPS-33160BW-DXXG 125/155 Mb/s   >37 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 5 to 2 dBm -35 dBm
SPS-33160AW-DXXG 125/155 Mb/s   >37 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 5 to 2 dBm -35 dBm
SPS-33200W-DXXG 125/155 Mb/s   >47 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 5 to 2 dBm -45 dBm
SPS-33200BW-DXXG 125/155 Mb/s   >47 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 5 to 2 dBm -45 dBm
SPS-33200AW-DXXG 125/155 Mb/s   >47 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 5 to 2 dBm -45 dBm
SPS-33240W-DXXG 125/155 Mb/s   >50 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 8 to 5 dBm -45 dBm
SPS-33240BW-DXXG 125/155 Mb/s   >50 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 8 to 5 dBm -45 dBm
SPS-33240AW-DXXG 125/155 Mb/s   >50 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 8 to 5 dBm -45 dBm
