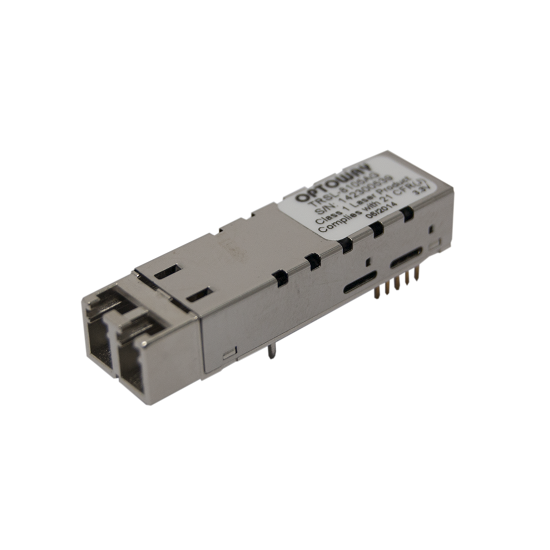

CWDM SFF

- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- Compliant Models for STM-1/OC-3, STM-4/OC-12, and STM-16/OC-48 SR, IR and LR
- Compliant Models for Gigabit Ethernet 1000BASE SX, LX, XD, ZX
- Compliant Models for Fibre Channel FC 4x/2x/1x
- Single 3.3V Supply
- RoHS Compliant





FC 4.25Gb/s SM LC
Product Number Bit Rate FC-PI Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-8340-CXX0G 4/2/1 Gb/s 400/200/100 >18dBm CWDM* 2x5 SFF 0 ~ 70°C 4 to - 0dBm -18dBm
TRSL-8380-CXX0G 4/2/1 Gb/s 400/200/100 >28dBm CWDM* 2x5 SFF 0 ~ 70°C 5 to - 1dBm -27dBm
TRSL-8340W-CXX0G 4/2/1 Gb/s 400/200/100 >18dBm CWDM* 2x7 SFF with DMI 0 ~ 70°C 4 to - 0dBm -18dBm
TRSL-8380W-CXX0G 4/2/1 Gb/s 400/200/100 >28dBm CWDM* 2x7 SFF with DMI 0 ~ 70°C 5 to -1dBm -27dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


SONET OC-48 / SDH STM-16
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-9340-CXX0G 2.448 Gb/s   >18dBm CWDM* 2x5 LC 0 ~ 70°C 3 to -2dBm -20dBm
TRSL-9380-CXX0G 2.448 Gb/s   >28dBm CWDM* 2x5 LC 0 ~ 70°C 5 to 10dBm -28dBm
TRSL-9340W-CXX0G 2.448 Gb/s   >18dBm CWDM* 2x10 LC 0 ~ 70°C 3 to -2dBm -20dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


Fibre Channel : 1X / 2X
Product Number Bit Rate FC-PI Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-9380F-CXX0G 2.125/1.063 Gb/s 200/100 >23dBm CWDM* 2x5 LC 0 ~ 70°C 5 to 0dBm -23dBm
TRSL-93120F-CXX0G 2.125/1.063 Gb/s 200/100 >30dBm CWDM* 2x5 LC 0 ~ 70°C 5 to 0dBm -30dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


Gigabit Ethernet 1000 BASE
Product Number Bit Rate 1000BASE Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-7350C-CXX0G 1.25/1.063 Gb/s XD >19dB CWDM* 2x5 LC   0 ~ 70°C 0 to -5dBm -24dBm
TRSL-7380C-CXX0G 1.25/1.063 Gb/s ZX >24dB CWDM* 2x5 LC   0 ~ 70°C 5 to 0dBm -24dBm
TRSL-7385C-CXX0G 1.25/1.063 Gb/s   >27dB CWDM* 2x5 LC   0 ~ 70°C 5 to 0dBm -37dBm
TRSL-73120C-CXX0G 1.25/1.063 Gb/s   >32dB CWDM* 2x5 LC   0 ~ 70°C 5 to 0dBm -32dBm
TRSL-73160C-CXX0G 1.25/1.063 Gb/s   >36dB CWDM* 2x5 LC   0 ~ 70°C 5 to 2dBm -34dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


SONET OC-12 / SDH STM-4
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-5380-CXX0G 622 Mb/s   >29dB CWDM* 2x5 LC   0 ~ 70°C 5 to 0dBm -29dBm
TRSL-5380W-CXX0G 622 Mb/s   >29dB CWDM* 2x10 LC   0 ~ 70°C 5 to 0dBm -29dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


SONET OC-3 / SDH STM-1
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-3380-CXX0G 125/155 Mb/s   >29dB CWDM* 2x5 LC   0 ~ 70°C 0 to -5dBm -34dBm
TRSL-33100-CXX0G 125/155 Mb/s   >31dB CWDM* 2x5 LC   0 ~ 70°C 2 to -3dBm -34dBm
TRSL-33120-CXX0G 125/155 Mb/s   >34dB CWDM* 2x5 LC   0 ~ 70°C 5 to 0dBm -34dBm
TRSL-3380W-CXX0G 125/155 Mb/s   >29dB CWDM* 2x10 LC   0 ~ 70°C 0 to -5dBm -34dBm
TRSL-33100W-CXX0G 125/155 Mb/s   >31dB CWDM* 2x10 LC   0 ~ 70°C 2 to -3dBm -34dBm
TRSL-33120W-CXX0G 125/155 Mb/s   >34dB CWDM* 2x10 LC   0 ~ 70°C 5 to 0dBm -34dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
