2X Gigabit Ethernet - 2.5 Gb/s GBIC

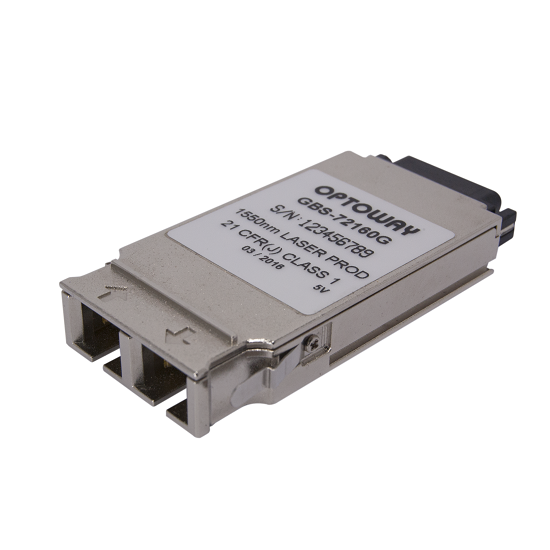

- Gigabit Interface Converter ( GBIC ) with standard SC Connector
- Compliant Model for 2X 1000BASE ( 2.5 Gb/s )
- 18-Wavelength CWDM GBIC Transceivers compliant with ITU-T G.694.2
- Single 5V Power Supply Voltage
- RoHS Compliant



MM GBIC : 2X / 1X Gigabit Ethernet
Product Number Bit Rate 1000
BASE
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBM-9000G 2.5/1.25 Gb/s 2x/1x 150/300 m* 850 nm SC GBIC 0 ~ 70°C -4 to -8 dBm -16 dBm
*150 m using 62.5 µm MMF optic cable ; 300 m using 50 µm MMF optic cable


SM GBIC : 2x / 1x Gigabit Ethernet
Product Number Bit Rate 1000
BASE
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBS-9010G 2.5/1.25 Gb/s 2x/1x 10 km 1310 nm SC GBIC 0 ~ 70°C  -3 to -8 dBm -20 dBm
GBS-9030G 2.5/1.25 Gb/s 2x/1x 30 km 1310 nm DFB SC GBIC 0 ~ 70°C   3 to -2 dBm -20 dBm
GBS-9250G 2.5/1.25 Gb/s 2x/1x 50 km 1550 nm DFB SC GBIC 0 ~ 70°C   5 to  0 dBm -20 dBm
GBS-9280G 2.5/1.25 Gb/s 2x/1x 80 km 1550 nm DFB SC GBIC 0 ~ 70°C   5 to  0 dBm -28 dBm


CWDM SM GBIC : 2x / 1x Gigabit Ethernet
Product Number Bit Rate 1000
BASE
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBS-9250-CXX0G 2.5/1.25 Gb/s 2x/1x >21 dB CWDM* SC GBIC 0 ~ 70°C 5 to 0 dBm -21 dBm
GBS-9280-CXX0G 2.5/1.25 Gb/s 2x/1x >28 dB CWDM* SC GBIC 0 ~ 70°C 5 to 0 dBm -28 dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
