4G FC

Fibre Channel : 4.25 Gbit/s

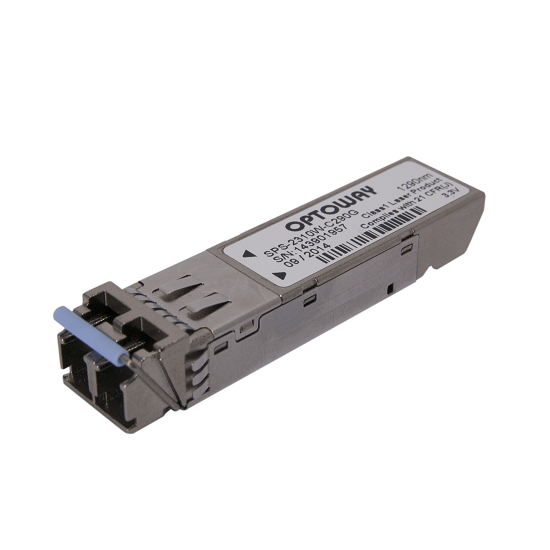

- MSA Small Form Factor Pluggable 2-Fiber Transceiver
- SFP with SFF-8472 Digital Diagnostic Monitoring Interface (DMI)
- 18-Wavelength CWDM Transceiver : 1470 nm to 1610 nm
- Compliant Models for Fibre Channel 4x / 2x / 1x
- Distance : 40 / 60 / 80 km
- RoHS Compliant


CWDM SFP SM LC
Product Number Bit Rate FC-PI Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-8340-CXX0G 4/2/1 Gb/s 400/200/100 >18dB CWDM* LC SFP 0 ~ 70°C 4 to 0dBm -18dBm
SPS-8360-CXX0G 4/2/1 Gb/s 400/200/100 >26dB CWDM* LC SFP 0 ~ 70°C 4 to 0dBm -26dBm
SPS-8380-CXX0G 4/2/1 Gb/s 400/200/100 >28dB CWDM* LC SFP 0 ~ 70°C 5 to 1dBm -27dBm
SPS-83100-CXX0G 4/2/1 Gb/s 400/200/100 >30dB CWDM* LC SFP 0 ~ 70°C 6 to 3dBm -27dBm
SPS-8340W-CXX0G 4/2/1 Gb/s 400/200/100 >18dB CWDM* LC SFP with DMI 0 ~ 70°C 4 to 0dBm -18dBm
SPS-8360W-CXX0G 4/2/1 Gb/s 400/200/100 >26dB CWDM* LC SFP with DMI 0 ~ 70°C 4 to 0dBm -26dBm
SPS-8380W-CXX0G 4/2/1 Gb/s 400/200/100 >28dB CWDM* LC SFP with DMI 0 ~ 70°C 5 to 1dBm -27dBm
SPS-83100W-CXX0G 4/2/1 Gb/s 400/200/100 >30dB CWDM* LC SFP with DMI 0 ~ 70°C 6 to 3dBm -27dBm
*18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm


CWDM SFF SM LC
Product Number Bit Rate FC-PI Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
TRSL-8340-CXX0G 4/2/1 Gb/s 400/200/100 >18dB CWDM* 2x5 SFF    0 ~ 70°C 4 to 0dBm -18dBm
TRSL-8380-CXX0G 4/2/1 Gb/s 400/200/100 >28dB CWDM* 2x5 SFF    0 ~ 70°C 5 to 1dBm -27dBm
TRSL-8340W-CXX0G 4/2/1 Gb/s 400/200/100 >18dB CWDM* 2x7 SFF with DMI    0 ~ 70°C 4 to 0dBm -18dBm
TRSL-8380W-CXX0G 4/2/1 Gb/s 400/200/100 >28dB CWDM* 2x7 SFF with DMI    0 ~ 70°C 5 to 1dBm -27dBm
CWDM *  18-Wavelength from 1270 nm to 1610 nm, each step 20 nm.
