PRODUCTS
CWDM

622 Mb/s

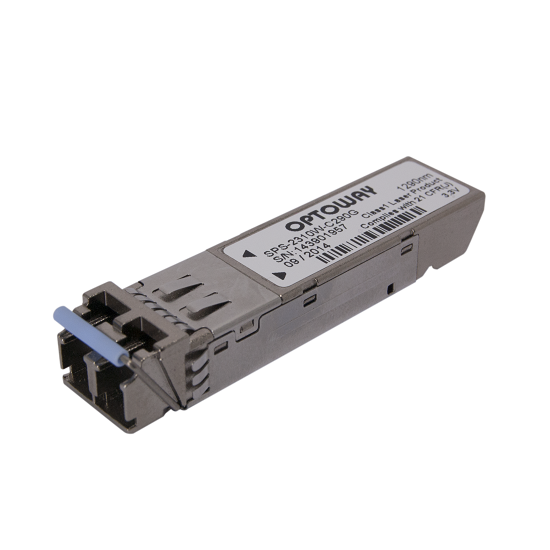

SFP  SM  LC
Product NumberBit Rate Bit Rate SONET
/SDH
Power Budget Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-5380-CXX0G 622 Mb/s   >29dB CWDM* LC SFP   0 ~ 70°C 5 to 0dBm -29dBm
SPS-5380B-CXX0G 622 Mb/s   >29dB CWDM* LC SFP -5 ~ 85°C 5 to 0dBm -29dBm
SPS-53120-CXX0G 622 Mb/s   >34dB CWDM* LC SFP   0 ~ 70°C 5 to 0dBm -34dBm
SPS-53120B-CXX0G 622 Mb/s   >34dB CWDM* LC SFP -5 ~ 85°C 5 to 0dBm -34dBm
SPS-53160-CXX0G 622 Mb/s   >38dB CWDM* LC SFP   0 ~ 70°C 5 to 1dBm -37dBm
SPS-53160B-CXX0G 622 Mb/s   >38dB CWDM* LC SFP -5 ~ 85°C 5 to 1dBm -37dBm
SPS-53200-CXX0G 622 Mb/s   >41dB CWDM* LC SFP   0 ~ 70°C 6 to 3dBm -38dBm
SPS-53200B-CXX0G 622 Mb/s   >41dB CWDM* LC SFP -5 ~ 85°C 6 to 3dBm -38dBm
SPS-5380W-CXX0G 622 Mb/s   >29dB CWDM* LC SFP with DMI   0 ~ 70°C 5 to 0dBm -29dBm
SPS-5380BW-CXX0G 622 Mb/s   >29dB CWDM* LC SFP with DMI -5 ~ 85°C 5 to 0dBm -29dBm
SPS-53120W-CXX0G 622 Mb/s   >34dB CWDM* LC SFP with DMI   0 ~ 70°C 5 to 0dBm -34dBm
SPS-53120BW-CXX0G 622 Mb/s   >34dB CWDM* LC SFP with DMI -5 ~ 85°C 5 to 0dBm -34dBm
SPS-53160W-CXX0G 622 Mb/s   >38dB CWDM* LC SFP with DMI   0 ~ 70°C 5 to 1dBm -37dBm
SPS-53160BW-CXX0G 622 Mb/s   >38dB CWDM* LC SFP with DMI -5 ~ 85°C 5 to 1dBm -37dBm
SPS-53200W-CXX0G 622 Mb/s   >41dB CWDM* LC SFP with DMI   0 ~ 70°C 6 to 3dBm -38dBm
SPS-53200BW-CXX0G 622 Mb/s   >41dB CWDM* LC SFP with DMI -5 ~ 85°C 6 to 3dBm -38dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


SFF  SM  LC
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-5380-CXX0G 622Mb/s   >29dB CWDM* 2x5 LC    0 ~ 70°C 5 to 0dBm -29dBm
TRSL-5380W-CXX0G 622Mb/s   >29dB CWDM* 2x10 LC    0 ~ 70°C 5 to 0dBm -29dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm


1X9 SM CWDM SC/FC/ST
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
TRS-5380-CXX0G 622 Mb/s LR-2 >29dB CWDM* 3.3V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0dBm -29dBm
TRS-53120-CXX0G 622 Mb/s LR-2 >34dB CWDM* 3.3V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0dBm -34dBm
TRS-53160-CXX0G 622 Mb/s LR-2 >38dB CWDM* 3.3V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0dBm -37dBm
TRS-5280-CXX0G 622 Mb/s LR-2 >29dB CWDM* 5V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0dBm -39dBm
TRS-52120-CXX0G 622 Mb/s LR-2 >34dB CWDM* 5V 1x9 SC/ST/FC   0 ~ 70°C   5 to 0dBm -34dBm
TRS-52160-CXX0G 622 Mb/s LR-2 >38dB CWDM* 5V 1x9 SC/ST/FC   0 ~ 70°C   5 to 1dBm -37dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
