XG-PON

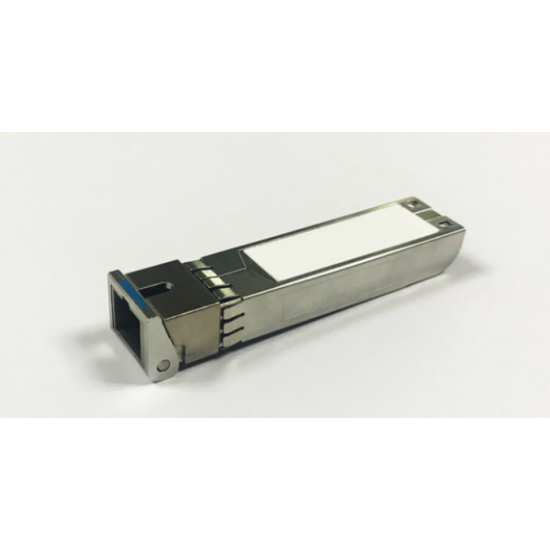

SPB-2620UW-XG

- Single fiber bi-directional data links asymmetric application.
- 2.488 Gbps Downstream/9.953 Gbps Upstream(XG-PON  ITU-T G.987.2)

- SFP+ package with SC/UPC receptacle
- Complies with SFP+ MSA (SFF-8431)
-
Complies with SFF-8472
- Complies with FCC 47 CFR Part 15, Class B
- CML compatible data input/output interface
- Low EMI and excellent ESD protection
- Digital diagnostic monitor interface

- RoHS-6 compliance


XS-PON SFP ONU Transceiver
Product Number TX RX Temperature
Range
Package Data
Sheet
Type Speed Wavelength Power Type Speed Wavelength Power
SPB-2620UW-XG BM 2.488 Gb/s 1270nm DFB 7/1 dBm CNT 9.953 Gb/s 1577nm -8/-28.5 dBm   0 ~ 70°C SFP+ with SC/UPC receptacle
SPB-2620BUW-XG BM 2.488 Gb/s 1270nm DFB 7/1 dBm CNT 9.953 Gb/s 1577nm -8/-28.5 dBm  -10 ~ 85°C SFP+ with SC/UPC receptacle
SPB-2620AUW-XG BM 2.488 Gb/s 1270nm DFB 7/1 dBm CNT 9.953 Gb/s 1577nm -8/-28.5 dBm  -40 ~ 85°C SFP+ with SC/UPC receptacle
