SFF

622 Mb/s 2-fiber

- SONET OC-12 / SDH STM-4 : 622 Mbps

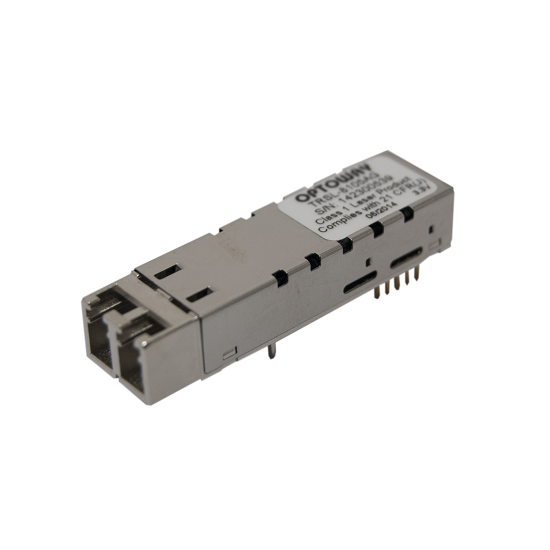

- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- 1310 nm and 1550 nm Long-wavelength for Single-mode Fiber Applications
- 1310 nm Short-wavelength for Multi-mode Fiber Applications
- Compliant Models for STM-4/OC-12 SR, IR and LR
- Single 3.3V Supply
- RoHS Compliant


SFF MM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-5101G 622 Mb/s   0 ~ 1000 m 1310 nm 2x5 LC    0 ~ 70 °C -12 to -19 dBm -26 dBm
TRML-5101AG 622 Mb/s   0 ~ 1000 m 1310 nm 2x5 LC -40 ~ 85 °C -12 to -19 dBm -26 dBm


SFF SM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-5120G 622 Mb/s IR-1 / S-4.1 20 km 1310 nm 2x5 LC    0 ~ 70 °C -8 to -14 dBm -28 dBm
TRSL-5120AG 622 Mb/s IR-1 / S-4.1 20 km 1310 nm 2x5 LC -40 ~ 85 °C -8 to -14 dBm -28 dBm
TRSL-5140G 622 Mb/s LR-1 / L-4.1 40 km 1310 nm 2x5 LC    0 ~ 70 °C  2 to   -3 dBm -28 dBm
TRSL-5140AG 622 Mb/s LR-1 / L-4.1 40 km 1310 nm DFB 2x5 LC -40 ~ 85 °C  2 to   -3 dBm -28 dBm
TRSL-5380G 622 Mb/s LR-2 / L-4.2 80 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  2 to   -3 dBm -29 dBm
TRSL-5380AG 622 Mb/s LR-2 / L-4.2 80 km 1550 nm DFB 2x5 LC -40 ~ 85 °C  2 to   -3 dBm -29 dBm
TRSL-5120WG 622 Mb/s IR-1 / S-4.1 20 km 1310 nm 2x10 LC    0 ~ 70 °C -8 to -14 dBm -28 dBm
TRSL-5120AWG 622 Mb/s IR-1 / S-4.1 20 km 1310 nm 2x10 LC -40 ~ 85 °C -8 to -14 dBm -28 dBm
TRSL-5140WG 622 Mb/s LR-1 / S-4.1 40 km 1310 nm 2x10 LC    0 ~ 70 °C  2 to   -3 dBm -28 dBm
TRSL-5140AWG 622 Mb/s LR-1 / S-4.1 40 km 1310 nm DFB 2x10 LC -40 ~ 85 °C  2 to   -3 dBm -28 dBm
TRSL-5380WG 622 Mb/s LR-2 / S-4.2 80 km 1550 nm DFB 2x10 LC    0 ~ 70 °C  2 to   -3 dBm -29 dBm
TRSL-5380AWG 622 Mb/s LR-2 / S-4.2 80 km 1550 nm DFB 2x10 LC -40 ~ 85 °C  2 to   -3 dBm -29 dBm


CWDM SFF SM LC
Product Number Bit Rate SONET
/SDH
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRSL-5380-CXX0G 622 Mb/s   >29 dB CWDM* 2x5 LC    0 ~ 70 °C 5 to 0 dBm -29 dBm
TRSL-5380W-CXX0G 622 Mb/s   >29 dB CWDM* 2x10 LC    0 ~ 70 °C 5 to 0 dBm -29 dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
