6G/10G

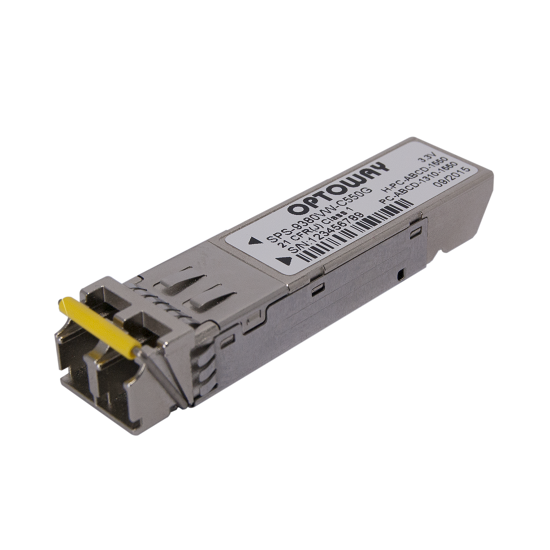

10Gb/s 2-Fiber SFP+

1 / 1
- Compliant with SFP+ MSA
- Compliant with IEEE 802.3ae 10GBASE
- DWDM:100GHz ITU Grid, C Band
- 18-Wavelength CWDM : 1270 nm to 1610 nm
- Low Power Dissipation
- Duplex LC Connector
- RoHS-6 Compliant (lead-free)


10Gb/s SFP+ MM LC
Product Number Bit Rate 10GBASE Reach Wavelength Package Temperature
Range		 Data
Sheet
SPM-2100WG 10.3 Gb/s SR/SW 300/82/33 m* 850 nm VCSEL SFP+ with DMI    0 ~ 70°C
SPM-2100BWG 10.3 Gb/s SR/SW 300/82/33 m* 850 nm VCSEL SFP+ with DMI -10 ~ 85°C
SPM-2100AWG 10.3 Gb/s SR/SW 300/82/33 m* 850 nm VCSEL SFP+ with DMI -40 ~ 85°C
*300 m for OM3 MMF, 82 m for OM2 MMF, and 33 m for OM1 MMF


10Gb/s SFP+ SM LC
Product Number Bit Rate 10GBASE Reach Wavelength Package Temperature
Range		 Data
Sheet
SPS-2102WG 10.3 Gb/s LR Lite   2 km 1310 nm SFP+ with DMI    0 ~ 70°C
SPS-2102BWG 10.3 Gb/s LR Lite   2 km 1310 nm SFP+ with DMI -10 ~ 85°C
SPS-2102AWG 10.3 Gb/s LR Lite   2 km 1310 nm SFP+ with DMI -40 ~ 85°C
SPS-2110WG 10.3 Gb/s LR/LW 10 km 1310 nm DFB SFP+ with DMI    0 ~ 70°C
SPS-2110BWG 10.3 Gb/s LR/LW 10 km 1310 nm DFB SFP+ with DMI -10 ~ 85°C
SPS-2110AWG 10.3 Gb/s LR/LW 10 km 1310 nm DFB SFP+ with DMI -40 ~ 85°C
SPS-2120WG 10.3 Gb/s LR/LW 20 km 1310 nm DFB SFP+ with DMI    0 ~ 70°C
SPS-2120BWG 10.3 Gb/s LR/LW 20 km 1310 nm DFB SFP+ with DMI -10 ~ 85°C
SPS-2120AWG 10.3 Gb/s LR/LW 20 km 1310 nm DFB SFP+ with DMI -40 ~ 85°C
SPS-2140WG 10.3 Gb/s LR/LW 40 km 1310 nm DFB SFP+ with DMI    0 ~ 70°C
SPS-2140BWG 10.3 Gb/s LR/LW 40 km 1310 nm DFB SFP+ with DMI -10 ~ 85°C
SPS-2140AWG 10.3 Gb/s LR/LW 40 km 1310 nm DFB SFP+ with DMI -40 ~ 85°C
SPS-2340WG 10.3 Gb/s ER/EW 40 km 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-2340BWG 10.3 Gb/s ER/EW 40 km 1550 nm EML SFP+ with DMI   -5 ~ 85°C
SPS-2340AWG 10.3 Gb/s ER/EW 40 km 1550 nm EML SFP+ with DMI -40 ~ 85°C
SPS-2170WG 10.3 Gb/s LR/LW 70 km 1310 nm DFB SFP+ with DMI    0 ~ 70°C
SPS-2380WG 10.3 Gb/s ZR/ZW 80 km 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-2380BWG 10.3 Gb/s ZR/ZW 80 km 1550 nm EML SFP+ with DMI   -5 ~ 85°C
SPS-2380AWG 10.3 Gb/s ZR/ZW 80 km 1550 nm EML SFP+ with DMI -40 ~ 85°C
SPS-23100WG 10.3 Gb/s ZR/ZW 100 km 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-23100BWG 10.3 Gb/s ZR/ZW 100 km 1550 nm EML SFP+ with DMI   -5 ~ 85°C
SPS-23100AWG 10.3 Gb/s ZR/ZW 100 km 1550 nm EML SFP+ with DMI -40 ~ 85°C
SPS-23101WG 10.3 Gb/s ZR/ZW 100 km (PB > 26 dB) 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-2340MWG 9.95 ~11.1 Gb/s Multirate* 40 km 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-2340BMWG 9.95 ~11.1 Gb/s Multirate* 40 km 1550 nm EML SFP+ with DMI   -5 ~ 85°C
SPS-2340AMWG 9.95 ~11.1 Gb/s Multirate* 40 km 1550 nm EML SFP+ with DMI -40 ~ 85°C
SPS-2380MWG 9.95 ~11.1 Gb/s Multirate* 80 km 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-2380BMWG 9.95 ~11.1 Gb/s Multirate* 80 km 1550 nm EML SFP+ with DMI   -5 ~ 85°C
SPS-2380AMWG 9.95 ~11.1 Gb/s Multirate* 80 km 1550 nm EML SFP+ with DMI -40 ~ 85°C
*SONET OC-192 / SDH STM-64, 10GBASE, 10G Fibre Channel, ITU-T G.709, 10GBASE + FEC


10Gb/s CWDM SFP+ SM LC
Product Number Bit Rate 10G BASE Reach Wavelength Package Temperature
Range		 Data
Sheet
SPS-2310W-CXX0G 10.3 Gb/s LR/LW 10 km CWDM* SFP+ with DMI    0 ~ 70°C
SPS-2310BW-CXX0G 10.3 Gb/s LR/LW 10 km CWDM* SFP+ with DMI -10 ~ 85°C
SPS-2310AW-CXX0G 10.3 Gb/s LR/LW 10 km CWDM* SFP+ with DMI -40 ~ 85°C
SPS-2340W-CXX0G 10.3 Gb/s   40 km CWDM** SFP+ with DMI    0 ~ 70°C
SPS-2340BW-CXX0G 10.3 Gb/s   40 km CWDM** SFP+ with DMI -10 ~ 85°C
SPS-2340AW-CXX0G 10.3 Gb/s   40 km CWDM** SFP+ with DMI -40 ~ 85°C
SPS-2370W-CXX0G 10.3 Gb/s   70 km CWDM*** SFP+ with DMI    0 ~ 70°C
SPS-2370BW-CXX0G 10.3 Gb/s   70 km CWDM*** SFP+ with DMI -10 ~ 85°C
SPS-2370AW-CXX0G 10.3 Gb/s   70 km CWDM*** SFP+ with DMI -40 ~ 85°C
SPS-2341W-CXX0G 10.3 Gb/s ER/EW 40 km CWDM**** SFP+ with DMI    0 ~ 70°C
SPS-2341BW-CXX0G 10.3 Gb/s ER/EW 40 km CWDM**** SFP+ with DMI  -5 ~  85°C
SPS-2371W-CXX0G 10.3 Gb/s ER/EW 70 km CWDM**** SFP+ with DMI    0 ~ 70°C
SPS-2371BW-CXX0G 10.3 Gb/s ER/EW 70 km CWDM**** SFP+ with DMI  -5 ~  85°C
SPS-2341MW-CXX0G 9.95 ~11.1 Gb/s Multirate***** 40 km CWDM**** SFP+ with DMI   0 ~  70°C
*   18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
**   6-Wavelength from 1270 nm to 1370 nm, each step 20 nm
***  4-Wavelength from 1270 nm to 1330 nm, each step 20 nm
**** 8-Wavelength from 1470 nm to 1610 nm, each step 20 nm
*****multirate for SONET OC-192 / SDH STM-64, 10GBASE, 10G Fibre Channel, ITU-T G.709, 10GBASE + FEC


10Gb/s DWDM SFP+ SM LC
Product Number Bit Rate 10GBASE Reach Spacing Wavelength Package Temperature
Range		 Data
Sheet
SPS-2341W-DXXG 10.3 Gb/s ER/EW 40 km 100 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2341BW-DXXG 10.3 Gb/s ER/EW 40 km 100 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2341AW-DXXG 10.3 Gb/s ER/EW 40 km 100 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2381W-DXXG 10.3 Gb/s ZR/ZW 80 km 100 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2381BW-DXXG 10.3 Gb/s ZR/ZW 80 km 100 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2381AW-DXXG 10.3 Gb/s ZR/ZW 80 km 100 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2341MW-DXXG 9.95 ~11.1 Gb/s Multirate* 40 km 100 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2341BMW-DXXG 9.95 ~11.1 Gb/s Multirate* 40 km 100 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2341AMW-DXXG 9.95 ~11.1 Gb/s Multirate* 40 km 100 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2381MW-DXXG 9.95 ~11.1 Gb/s Multirate* 80 km 100 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2381BMW-DXXG 9.95 ~11.1 Gb/s Multirate* 80 km 100 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2381AMW-DXXG 9.95 ~11.1 Gb/s Multirate* 80 km 100 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2345W-DXXXG 10.3 Gb/s ER/EW 40 km   50 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2345BW-DXXXG 10.3 Gb/s ER/EW 40 km   50 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2345AW-DXXXG 10.3 Gb/s ER/EW 40 km   50 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2385W-DXXXG 10.3 Gb/s ZR/ZW* 80 km   50 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2385BW-DXXXG 10.3 Gb/s ZR/ZW* 80 km   50 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2385AW-DXXXG 10.3 Gb/s ZR/ZW* 80 km   50 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2345MW-DXXXG 9.95 ~11.1 Gb/s Multirate* 40 km   50 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2345BMW-DXXXG 9.95 ~11.1 Gb/s Multirate* 40 km   50 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2345AMW-DXXXG 9.95 ~11.1 Gb/s Multirate* 40 km   50 GHz DWDM SFP+ with DMI -40 ~ 85°C
SPS-2385MW-DXXXG 9.95 ~11.1 Gb/s Multirate* 80 km   50 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-2385BMW-DXXXG 9.95 ~11.1 Gb/s Multirate* 80 km   50 GHz DWDM SFP+ with DMI   -5 ~ 85°C
SPS-2385AMW-DXXXG 9.95 ~11.1 Gb/s Multirate* 80 km   50 GHz DWDM SFP+ with DMI -40 ~ 85°C
*SONET OC-192 LR2, 10GBASE-ZR/ZW, 10G Fibre Channel, ITU-T G.709, 10GBASE-ZR/ZW + FEC
