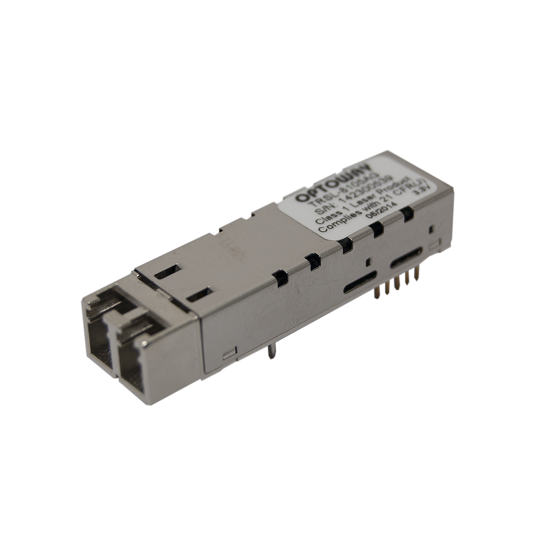

Multi-Mode SFF

- MSA Small Form Factor (SFF) Transceivers
- 850 nm and 1310 nm Short-wavelength for Multi-mode Fiber Applications
- Single 3.3V Supply
- RoHS Compliant



SFF MM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-9100G 2.5 Gb/s   150*/300 m** 850 nm 2x5 LC    0 ~ 70°C -4 to -9 dBm -15 dBm
TRML-9100AG 2.5 Gb/s   150*/300 m** 850 nm 2x5 LC -40 ~ 85°C -4 to -9 dBm -15 dBm
*using 62.5/125 µm MM optic cable  **using 50/125 µm MM optic cable


SFF MM LC
Product Number Bit Rate 1000BASE Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-9100FG 2.125/1.063 Gb/s SX 300*/500 m** 850 nm 2x5 LC    0 ~ 70 °C -4 to -9 dBm -15 dBm
TRML-9100AFG 2.125/1.063 Gb/s SX 300*/500 m** 850 nm 2x5 LC -40 ~ 85 °C -4 to -9 dBm -15 dBm
*150 m links with 62.5/125 µm MMF Cables and 300 m links with 50/125 µm MMF Cables


SFF MM LC : 1.25Gbps
Product Number Bit Rate 1000BASE Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-7100CG 1.25/1.063 Gb/s SX 300*/550 m** 850 nm 2x5 LC    0 ~ 70 °C -4 to -9 dBm -17 dBm
TRML-7100ACG 1.25/1.063 Gb/s SX 300*/550 m** 850 nm 2x5 LC -40 ~ 85 °C -4 to -9 dBm -17 dBm
*using 62.5/125 µm MMF optic cable ; **using 50/125 µm MMF optic cable


SFF MM LC : 622 Mbps
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-5101G 622 Mb/s   0 ~ 1000 m 1310 nm 2x5 LC    0 ~ 70 °C -12 to -19 dBm -26 dBm
TRML-5101AG 622 Mb/s   0 ~ 1000 m 1310 nm 2x5 LC -40 ~ 85 °C -12 to -19 dBm -26 dBm


SFF MM LC
Product Number Bit Rate SONET
/SDH
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data Sheet
TRML-3102G 125/155 Mb/s   0 ~ 2000 m 1310 nm 2x5 LC    0 ~ 70 °C -12 to -19 dBm -30 dBm
TRML-3102AG 125/155 Mb/s   0 ~ 2000 m 1310 nm 2x5 LC -40 ~ 85 °C -12 to -19 dBm -30 dBm
