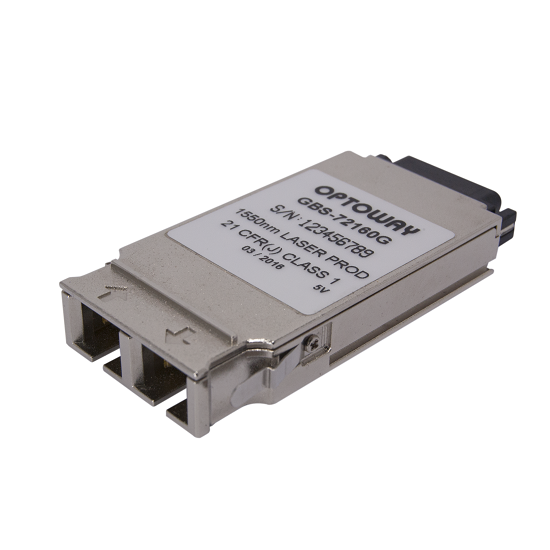

Gigabit Ethernet -1000 BASE GBIC

- Gigabit Interface Converter ( GBIC ) with standard SC Connector.
- Compliant Model for 1000BASE-SX / -LX / -ZX.
- 18-Wavelength CWDM GBIC Transceivers compliant with ITU-T G.694.2.
- Single 5V Power Supply Voltage.
- RoHS Compliant



MM GBIC : 1000BASE / 1X Fibre Channel
Product Number Bit Rate 1000
BASE
Reach Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBM-7000G 1.25/1.063 Gb/s SX 300/500 m 850 nm SC GBIC 0 ~ 70°C -4 to -9.5 dBm -18 dBm
*300 m using 62.5 µm MMF optic cable ; 500 m using 50 µm MMF optic cable


SM GBIC : 2X Gigabit Ethernet
Product Number Bit Rate 1000
BASE
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBS-7010G 1.25/1.063 Gb/s LX/LH   10 km 1310 nm SC GBIC 0 ~ 70°C -3 to -9 dBm -20 dBm
GBS-7020G 1.25/1.063 Gb/s     20 km 1310 nm SC GBIC 0 ~ 70°C -1 to -6 dBm -22 dBm
GBS-7030G 1.25/1.063 Gb/s     30 km 1310 nm SC GBIC 0 ~ 70°C  0 to -5 dBm -24 dBm
GBS-7250G 1.25/1.063 Gb/s XD   50 km 1550 nm DFB SC GBIC 0 ~ 70°C  0 to -5 dBm -24 dBm
GBS-7280G 1.25/1.063 Gb/s ZX   80 km 1550 nm DFB SC GBIC 0 ~ 70°C  5 to  0 dBm -24 dBm
GBS-72120G 1.25/1.063 Gb/s   120 km 1550 nm DFB SC GBIC 0 ~ 70°C  5 to  0 dBm -32 dBm
GBS-72160G 1.25/1.063 Gb/s   160 km 1550 nm DFB SC GBIC 0 ~ 70°C  5 to  2 dBm -34 dBm


CWDM SM GBIC : 1000BASE / 1X Fibre Channel
Product Number Bit Rate 1000
BASE
Power
Budget
Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
GBS-7250-CXX0G 1.25/1.063 Gb/s XD >19 dB CWDM* SC GBIC 0 ~ 70°C 0 to -5 dBm -24 dBm
GBS-7280-CXX0G 1.25/1.063 Gb/s ZX >24 dB CWDM* SC GBIC 0 ~ 70°C 5 to  0 dBm -24 dBm
GBS-7285-CXX0G 1.25/1.063 Gb/s   >27 dB CWDM* SC GBIC 0 ~ 70°C 5 to  0 dBm -27 dBm
GBS-72120-CXX0G 1.25/1.063 Gb/s   >32 dB CWDM* SC GBIC 0 ~ 70°C 5 to  0 dBm -32 dBm
GBS-72160-CXX0G 1.25/1.063 Gb/s   >36 dB CWDM* SC GBIC 0 ~ 70°C 5 to  2 dBm -34 dBm
*300 m using 62.5 µm MMF optic cable ; 500 m using 50 µm MMF optic cable
