PRODUCTS

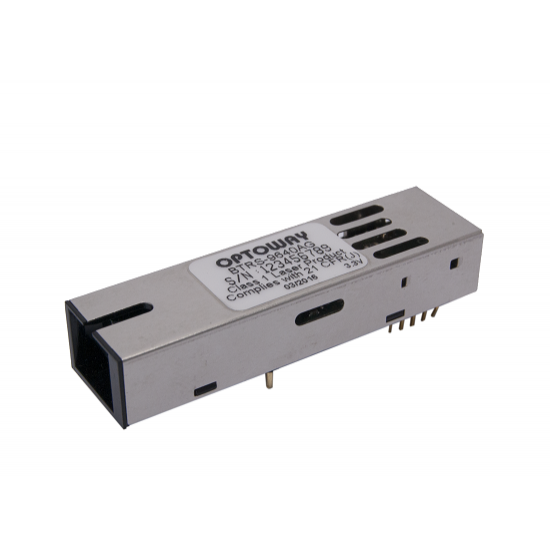

SFF 2X5 Package

155 Mb/s

2X5 SFF WDM MM SC
Product Number Bit Rate Reach TX RX Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
BTRS-3602MG 125 Mb/s 0 ~ 2000m 1310nm 1550nm 3.3V 2x5 SC   0 ~ 70°C -8 to -15dBm -30dBm
BTRS-3602AMG 125 Mb/s 0 ~ 2000m 1310nm 1550nm 3.3V 2x5 SC -40 ~ 85°C -8 to -15dBm -30dBm
BTRS-3702MG 125 Mb/s 0 ~ 2000m 1550nm 1310nm 3.3V 2x5 SC   0 ~ 70°C -8 to -15dBm -30dBm
BTRS-3702AMG 125 Mb/s 0 ~ 2000m 1550nm 1310nm 3.3V 2x5 SC -40 ~ 85°C -8 to -15dBm -30dBm


2X5 SFF WDM SM SC
Product Number Bit Rate Reach TX RX Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
BTRS-3620G 125/155 Mb/s 20km 1310nm 1550nm 3.3V 2x5 SC   0 ~ 70°C -8 to -14dBm -33dBm
BTRS-3620AG 125/155 Mb/s 20km 1310nm 1550nm 3.3V 2x5 SC -40 ~ 85°C -8 to -14dBm -33dBm
BTRS-3720G 125/155 Mb/s 20km 1550nm 1310nm 3.3V 2x5 SC   0 ~ 70°C -8 to -14dBm -33dBm
BTRS-3720AG 125/155 Mb/s 20km 1550nm 1310nm 3.3V 2x5 SC -40 ~ 85°C -8 to -14dBm -33dBm
BTRS-3640G 125/155 Mb/s 40km 1310nm 1550nm 3.3V 2x5 SC   0 ~ 70°C -3 to -8dBm -33dBm
BTRS-3640AG 125/155 Mb/s 40km 1310nm 1550nm 3.3V 2x5 SC -40 ~ 85°C -3 to -8dBm -33dBm
BTRS-3740G 125/155 Mb/s 40km 1550nm DFB 1310nm 3.3V 2x5 SC   0 ~ 70°C -3 to -8dBm -33dBm
BTRS-3740AG 125/155 Mb/s 40km 1550nm DFB 1310nm 3.3V 2x5 SC -40 ~ 85°C -3 to -8dBm -33dBm
BTRS-3660G 125/155 Mb/s 60km 1310nm 1550nm 3.3V 2x5 SC   0 ~ 70°C   0 to -5dBm -34dBm
BTRS-3660AG 125/155 Mb/s 60km 1310nm 1550nm 3.3V 2x5 SC -40 ~ 85°C   0 to -5dBm -34dBm
BTRS-3760G 125/155 Mb/s 60km 1550nm DFB 1310nm 3.3V 2x5 SC   0 ~ 70°C   0 to -5dBm -34dBm
BTRS-3760AG 125/155 Mb/s 60km 1550nm DFB 1310nm 3.3V 2x5 SC -40 ~ 85°C   0 to -5dBm -34dBm
BTRS-3680G 125/155 Mb/s 80km 1310nm 1550nm 3.3V 2x5 SC    0 ~ 70°C   3 to -2dBm -34dBm
BTRS-3680AG 125/155 Mb/s 80km 1310nm 1550nm 3.3V 2x5 SC -40 ~ 85°C    3 to -2dBm -34dBm
BTRS-3780G 125/155 Mb/s 80km 1550nm DFB 1310nm 3.3V 2x5 SC    0 ~ 70°C   2 to -3dBm -34dBm
BTRS-3780AG 125/155 Mb/s 80km 1550nm DFB 1310nm 3.3V 2x5 SC -40 ~ 85°C   2 to -3dBm -34dBm
BTRS-37120-1510G 125/155 Mb/s 120km 1510nm DFB 1590nm 3.3V 2x5 SC    0 ~ 70°C   3 to -2dBm -35dBm
BTRS-37120A-1510G 125/155 Mb/s 120km 1510nm DFB 1590nm 3.3V 2x5 SC -40 ~ 85°C   3 to -2dBm -35dBm
BTRS-37120-1590G 125/155 Mb/s 120km 1590nm DFB 1510nm 3.3V 2x5 SC    0 ~ 70°C   3 to -2dBm -35dBm
BTRS-37120A-1590G 125/155 Mb/s 120km 1590nm DFB 1510nm 3.3V 2x5 SC -40 ~ 85°C   3 to -2dBm -35dBm
