1G/2.5G/3.2Gbps

Gigabit Ethernet DWDM

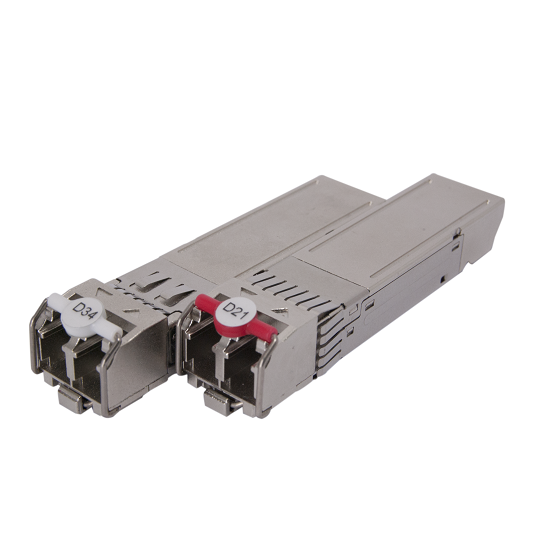

Gigabit Ethernet DWDM SFP SM LC
Product Number Bit Rate 1000
BASE
Power Budget Spacing / Wavelength Package Temperature
Range
TX Power RX Sens. Data
Sheet
SPS-7350W-DXXG 1.25 Gb/s XD >19 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 0 to -5 dBm -24 dBm
SPS-7350BW-DXXG 1.25 Gb/s XD >19 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 0 to -5 dBm -24 dBm
SPS-7350AW-DXXG 1.25 Gb/s XD >19 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 0 to -5 dBm -24 dBm
SPS-7380W-DXXG 1.25 Gb/s ZX >26 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 5 to  2 dBm -24 dBm
SPS-7380BW-DXXG 1.25 Gb/s ZX >26 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 5 to  2 dBm -24 dBm
SPS-7380AW-DXXG 1.25 Gb/s ZX >26 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 5 to  2 dBm -24 dBm
SPS-73120W-DXXG 1.25 Gb/s   >32 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 5 to  0 dBm -32 dBm
SPS-73120BW-DXXG 1.25 Gb/s   >32 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 5 to  0 dBm -32 dBm
SPS-73120AW-DXXG 1.25 Gb/s   >32 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 5 to  0 dBm -32 dBm
SPS-73160W-DXXG 1.25 Gb/s   >37 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 5 to  2 dBm -35 dBm
SPS-73160BW-DXXG 1.25 Gb/s   >37 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 5 to  2 dBm -35 dBm
SPS-73160AW-DXXG 1.25 Gb/s   >37 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 5 to  2 dBm -35 dBm
SPS-73180W-DXXG 1.25 Gb/s   >39 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 7 to  4 dBm -35 dBm
SPS-73180BW-DXXG 1.25 Gb/s   >39 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 7 to  4 dBm -35 dBm
SPS-73180AW-DXXG 1.25 Gb/s   >39 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 7 to  4 dBm -35 dBm
SPS-73200W-DXXG 1.25 Gb/s   >41 dB 100GHz with DWDM SFP with DMI    0 ~ 70°C 8 to  5 dBm -36 dBm
SPS-73200BW-DXXG 1.25 Gb/s   >41 dB 100GHz with DWDM SFP with DMI -10 ~ 85°C 8 to  5 dBm -36 dBm
SPS-73200AW-DXXG 1.25 Gb/s   >41 dB 100GHz with DWDM SFP with DMI -40 ~ 85°C 8 to  5 dBm -36 dBm
