PRODUCTS
Transmitter

Surface-Emitted LED

- Hermetically sealed 1310 nm surface-emitted LED
- Wide operating temperature range : - 40 to 85oC
- Coaxial pigtail package with various connector terminations : SC, FC, ST, LC, MU and no connector
- Receptacle package with various connector terminations: SC, FC, and ST
- SONET / SDH OC-3 applications
- Fast Ethernet and Fiber Channel applications
- RoHS Compliant

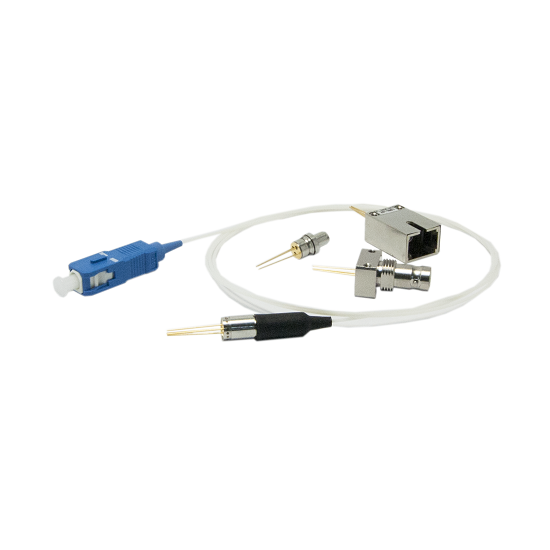

Pigtail Package
Product Number Wavelength Speed Pout Temperature Package Data
Sheet
SD-3300 1310nm 155 Mb/s 30µw -40 ~ 85°C 3-pin coaxial with 62.5 µm MM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Package Data
Sheet
SD-3500 1310nm 155 Mb/s 30µw -40 ~ 85°C 3-pin coaxial with 62.5 µm MM fiber
