Fibre Channel

32G FC SFP28

- Compliant with SFP28 MSA
- Compliant with 32GFC
- Uncooled 4-Wavelength CWDM DFB LD: from 1270 nm to 1330 nm
- Temperature-stabilized DWDM EML Transmitter
- Support OTN 27.95Gbps
- Support 25G Ethernet
- Low Power Dissipation.
- Duplex LC Connector
- Single 3.3 V Power Supply
- RoHS-6 Compliant (lead-free)



32Gb/s FC SFP28 MM LC
Product Number FC 32G FC Reach Wavelength Package Temperature
Range
Data
Sheet
SPM-2500FWG 32G/16G/8G 3200-SN  100 m 850 nm SFP28 with DMI    0 ~ 70°C


32Gb/s FC SFP28 SM LC
Product Number FC 32G FC Reach Wavelength Package Temperature
Range
Data
Sheet
SPS-2502FWG 32G/16G/8G 3200-SM   2 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C

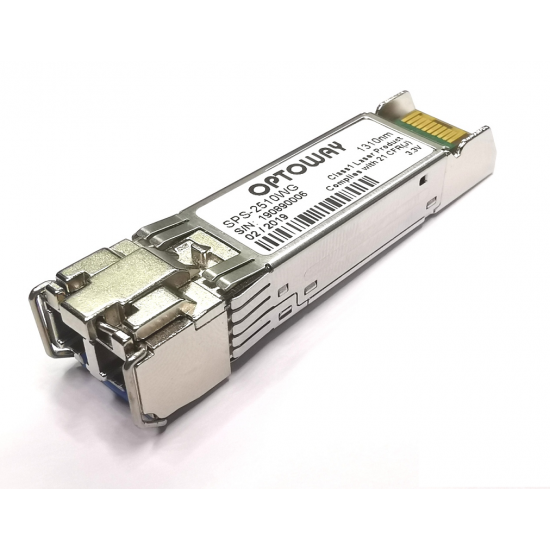

SPS-2510FWG 32G/16G/8G 3200-SM 10 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2520FWG 32G/16G/8G 3200-SM 20 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2530FWG 32G/16G/8G 3200-SM 30 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2540FWG 32G/16G/8G 3200-SM 40 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C


32Gb/s FC CWDM SFP28 SM LC
Product Number FC 32G FC Power Budget Wavelength Package Temperature
Range
Data
Sheet
SPS-2502FW-CXX0G 32G/16G/8G 3200-SM >   7 dB CWDM* SFP28 with DMI    0 ~ 70°C
SPS-2510FW-CXX0G 32G/16G/8G 3200-SM > 14 dB CWDM* SFP28 with DMI    0 ~ 70°C
SPS-2520FW-CXX0G 32G/16G/8G 3200-SM > 17 dB CWDM* SFP28 with DMI    0 ~ 70°C
SPS-2530FW-CXX0G 32G/16G/8G 3200-SM > 21 dB CWDM* SFP28 with DMI    0 ~ 70°C
* 4-Wavelength from 1270 nm to 1330 nm, each step 20 nm


32GFC SFP28 SM LC DWDM
Product Number FC Reach Spacing Wavelength Package Temperature
Range
Data
Sheet
SPS-2511FW-DXXG* 32/16/8 G 10 km 100 GHz DWDM SFP28 with DMI    0 ~ 70°C
