3G-SDI/HD-SDI

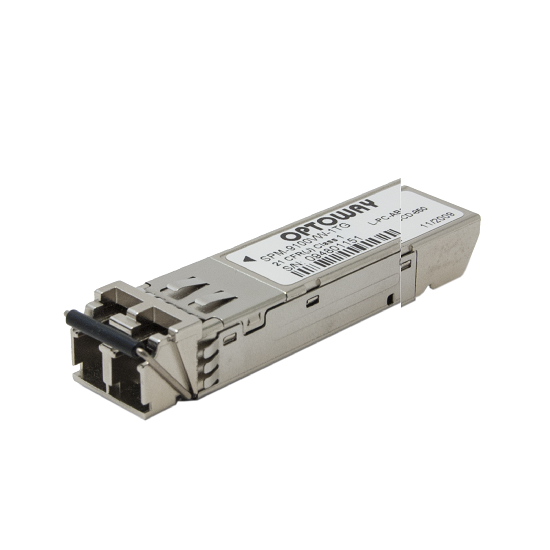

3G-SDI MM SFP

1 / 1
- SMPTE 297-2006 Compatible
- Support SMPTE 424M/292M/297M/259M
- Speed from 50 Mb/s to 3Gb/s
- Support Video Pathological Patterns for SD-SDI, HD-SDI, and 3G-SDI
- SFP Dual Transmitter / Dual Receiver / Transceiver
- Single 3.3V Power Supply
- RoHS Compliant


3Gb/s MM Video SFP Transmitter
Product Number Type Bit Rate TX1 TX2 Package Temperature
Range		 Data
Sheet
Wavelength Power Wavelength Power
SPM-9100V-2TG 2-TX 50 ~ 3000 Mb/s 850 nm -2 to -7 dBm 850 nm -2 to -7 dBm LC SFP 0 ~ 70°C
SPM-9100V-1TG 1-TX 50 ~ 3000 Mb/s 850 nm -2 to -7 dBm     LC SFP 0 ~ 70°C
SPM-9100VW-2TG 2-TX 50 ~ 3000 Mb/s 850 nm -2 to -7 dBm 850 nm -2 to -7 dBm LC SFP with DMI 0 ~ 70°C
SPM-9100VW-1TG 1-TX 50 ~ 3000 Mb/s 850 nm -2 to -7 dBm     LC SFP with DMI 0 ~ 70°C


3Gb/s MM Video SFP Receiver
Product Number Type Bit Rate RX1 RX2 Package Temperature
Range		 Data
Sheet
Wavelength Sens. Wavelength Sens.
SPM-9100V-2RG 2-RX 50 ~ 3000 Mb/s 850 nm 0 to -15 dBm 850 nm 0 to -15 dBm LC SFP 0 ~ 70°C
SPM-9100V-1RG 1-RX 50 ~ 3000 Mb/s 850 nm 0 to -15 dBm     LC SFP 0 ~ 70°C
SPM-9100VW-2RG 2-RX 50 ~ 3000 Mb/s 850 nm 0 to -15 dBm 850 nm 0 to -15 dBm LC SFP with DMI 0 ~ 70°C
SPM-9100VW-1RG 1-RX 50 ~ 3000 Mb/s 850 nm 0 to -15 dBm     LC SFP with DMI 0 ~ 70°C


3Gb/s MM Video SFP 1-Transmitter + 1-Receiver
Product Number Type Bit Rate Reach at 3 G/bs Package Temperature
Range		 Data
Sheet
SPM-9100V-1T1RG 1-TX + 1-RX 50 ~3000 Mb/s 300 m LC SFP 0 ~ 70°C
SPM-9100VW-1T1RG 1-TX + 1-RX 50 ~3000 Mb/s 300 m LC SFP with DMI 0 ~ 70°C


3Gb/s MM Video SFP Transceiver (same pin assignment as SFP_MSA)
Product Number Type Bit Rate Reach at 3 G/bs Package Temperature
Range		 Data
Sheet
SPM-9100VG TRX 50 ~3000 Mb/s 300 m LC SFP 0 ~ 70°C
SPM-9100VWG TRX 50 ~3000 Mb/s 300 m LC SFP with DMI 0 ~ 70°C
