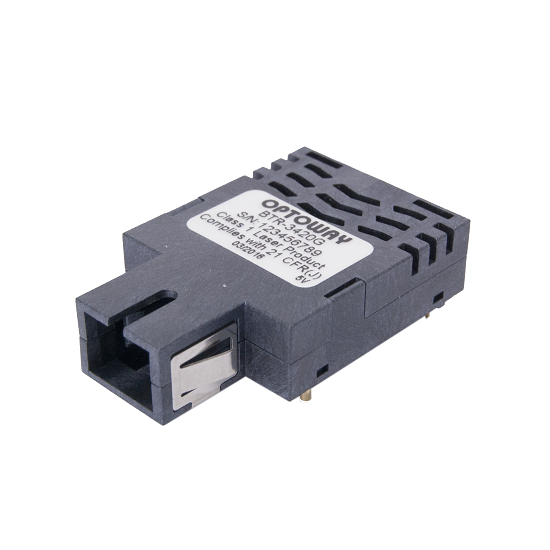

1x9 Package

Gigabit Ethernet

1x9 WDM MM
Product Number Bit Rate Reach TX RX Voltage Package Tempe
ra
ture

Range
TX Power RX Sens. Data Sheet
BTR-7600MG 1.25 Gb/s 500m 1310nm 1550nm 3.3V 1x9   0 ~ 70°C -4 to -10dBm -17dBm
BTR-7600AMG 1.25 Gb/s 500m 1310nm 1550nm 3.3V 1x9 -20 ~ 85°C -4 to -10dBm -17dBm
BTR-7700MG 1.25 Gb/s 500m 1550nm 1310nm 3.3V 1x9   0 ~ 70°C -4 to -10dBm -17dBm
BTR-7700AMG 1.25 Gb/s 500m 1550nm 1310nm 3.3V 1x9 -20 ~ 85°C -4 to -10dBm -17dBm


1X9 WDM SM
Product Number Bit Rate Reach TX RX Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
BTR-7610G 1.25 Gb/s 10km 1310nm 1550nm 3.3V 1x9   0 ~ 70°C -3 to -9dBm -20dBm
BTR-7610AG 1.25 Gb/s 10km 1310nm 1550nm 3.3V 1x9 -20 ~ 85°C -3 to -9dBm -20dBm
BTR-7710G 1.25 Gb/s 10km 1550nm DFB 1310nm 3.3V 1x9   0 ~ 70°C -3 to -9dBm -20dBm
BTR-7710AG 1.25 Gb/s 10km 1550nm DFB 1310nm 3.3V 1x9 -20 ~ 85°C -3 to -9dBm -20dBm
BTR-7620G 1.25 Gb/s 20km 1310nm 1550nm 3.3V 1x9  0 ~ 70°C -3 to -8dBm -22dBm
BTR-7620AG 1.25 Gb/s 20km 1310nm 1550nm 3.3V 1x9 -20 ~ 85°C -3 to -8dBm -22dBm
BTR-7720G 1.25 Gb/s 20km 1550nm DFB 1310nm 3.3V 1x9   0 ~ 70°C -3 to -8dBm -22dBm
BTR-7720AG 1.25 Gb/s 20km 1550nm DFB 1310nm 3.3V 1x9 -20 ~ 85°C -3 to -8dBm -22dBm
BTR-7640G 1.25 Gb/s 40km 1310nm DFB 1550nm 3.3V 1x9   0 ~ 70°C   2 to -3dBm -23dBm
BTR-7740G 1.25 Gb/s 40km 1550nm DFB 1310nm 3.3V 1x9   0 ~ 70°C   2 to -3dBm -23dBm
BTR-7660G 1.25 Gb/s 60km 1310nm DFB 1550nm 3.3V 1x9    0 ~ 70°C   4 to -1dBm -26dBm
BTR-7760G 1.25 Gb/s 60km 1550nm DFB 1310nm 3.3V 1x9   0 ~ 70°C   2 to -3dBm -26dBm
BTR-7780-1510G 1.25 Gb/s 80km 1510nm DFB 1590nm 3.3V 1x9    0 ~ 70°C  3 to -2dBm -26dBm
BTR-7780-1590G 1.25 Gb/s 80km 1590nm DFB 1510nm 3.3V 1x9    0 ~ 70°C  3 to -2dBm -26dBm
BTR-77120-1510G 1.25 Gb/s 120km 1510nm DFB 1590nm 3.3V 1x9    0 ~ 70°C  2 to -3dBm -34dBm
BTR-77120-1590G 1.25 Gb/s 120km 1590nm DFB 1510nm 3.3V 1x9   0 ~ 70°C  2 to -3dBm -34dBm


1X9 WDM SM (1310nm / 1490nm)
Product Number Bit Rate Reach TX RX Voltage Package Temperature
Range
TX Power RX Sens. Data Sheet
BTR-7810G 1.25 Gb/s 10km 1310nm 1490nm 3.3V 1x9   0 ~ 70°C -3 to -9dBm -20dBm
BTR-7810AG 1.25 Gb/s 10km 1310nm 1490nm 3.3V 1x9 -20 ~ 85°C -3 to -9dBm -20dBm
BTR-7910G 1.25 Gb/s 10km 1490nm DFB 1310nm 3.3V 1x9   0 ~ 70°C -3 to -9dBm -20dBm
BTR-7910AG 1.25 Gb/s 10km 1490nm DFB 1310nm 3.3V 1x9 -20 ~ 85°C -3 to -9dBm -20dBm
BTR-7820G 1.25 Gb/s 20km 1310nm 1490nm 3.3V 1x9  0 ~ 70°C -3 to -8dBm -22dBm
BTR-7820AG 1.25 Gb/s 20km 1310nm 1490nm 3.3V 1x9 -20 ~ 85°C -3 to -8dBm -22dBm
BTR-7920G 1.25 Gb/s 20km 1490nm DFB 1310nm 3.3V 1x9   0 ~ 70°C -3 to -8dBm -22dBm
BTR-7920AG 1.25 Gb/s 20km 1490nm DFB 1310nm 3.3V 1x9 -20 ~ 85°C -3 to -8dBm -22dBm
BTR-7840G 1.25 Gb/s 40km 1310nm DFB 1490nm 3.3V 1x9   0 ~ 70°C   2 to -3dBm -23dBm
BTR-7940G 1.25 Gb/s 40km 1490nm DFB 1310nm 3.3V 1x9   0 ~ 70°C   2 to -3dBm -23dBm
BTR-7860G 1.25 Gb/s 60km 1310nm DFB 1490nm 3.3V 1x9    0 ~ 70°C   4 to -1dBm -26dBm
BTR-7960G 1.25 Gb/s 60km 1490nm DFB 1310nm 3.3V 1x9   0 ~ 70°C   2 to -3dBm -26dBm
